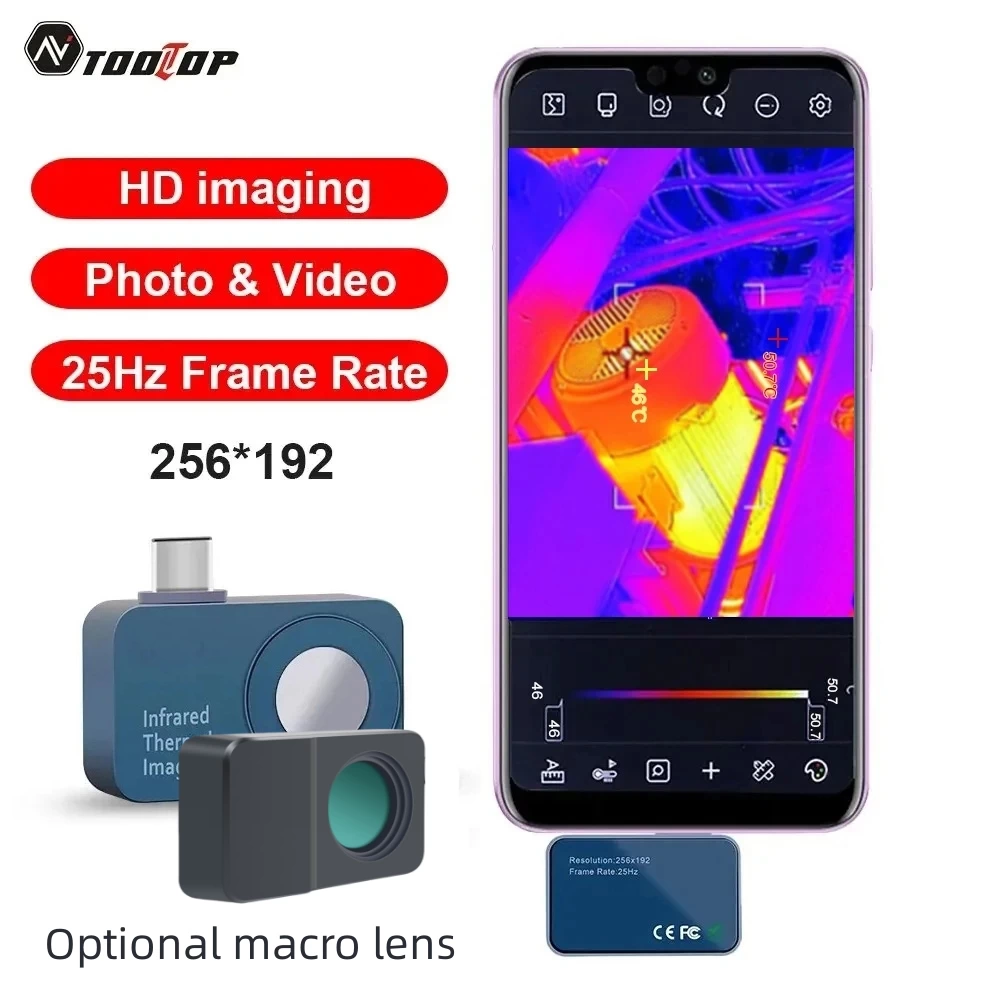

TOOLTOP T7 256*192 Android Type-C Thermal Imager 25Hz Mobile Thermal Imaging Camera for Solar Panel Power Device Fault Detect
Description
Note: In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry
Separate purchase link for macro lens: https://www.aliexpress.com/item/1005009031702069.html
(This link only compatible with T7 thermal imagers which were purchased after January 1, 2025, Please purchase with caution!!!)
Upgrade

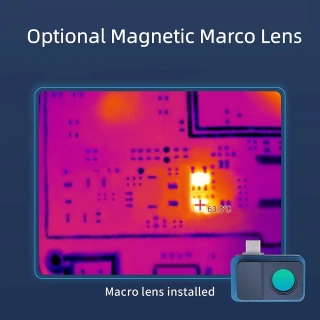

Optional magnetic macro lens, lightweight, all germanium optical transmittance 93%
Minimum observable component size of 2 * 1mm
Features:
High-quality optical lens, equipped with 256*192 high-resolution infrared sensor, excellent imaging effect
25Hz high frame rate imaging, smooth picture flow without lag
Used with mobile APP, it supports taking photos ,videos and storing them in the photo album, allowing professional thermal imaging analysis anytime and anywhere.

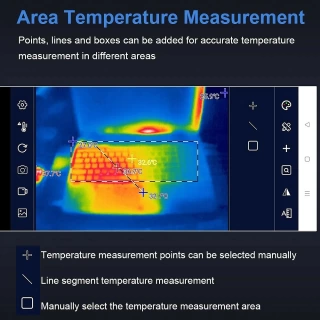

Add points, lines and rectangular boxes for regional temperature measurement. Lines and rectangular boxes support high and low temperature tracking and high temperature alarms.
Wide temperature measurement range: -15℃-600℃;
Automatic temperature tracking, supporting high and low temperature and center point temperature tracking;
Specifications:
High-quality optical lens, equipped with 256*192 high-resolution infrared sensor, excellent imaging effect
25Hz high frame rate imaging, smooth picture flow without lag
Used with mobile APP, it supports taking photos ,videos and storing them in the photo album, allowing professional thermal imaging analysis anytime and anywhere.
Add points, lines and rectangular boxes for regional temperature measurement. Lines and rectangular boxes support high and low temperature tracking and high temperature alarms.
Wide temperature measurement range: -15℃-600℃;
Automatic temperature tracking, supporting high and low temperature and center point temperature tracking;
Specifications:
Model:T7
Resolution:256 x 192
Wavelength:8-14um
Frame rate:25Hz
NETD:<50mk@25℃
FOV :56°x42°
Lens:3.2mm
Temperature measurement range:-15℃~600℃
Temperature measurement accuracy:±2℃ or ±2%
Temperature measurement: Highest, lowest, central point and area temperature measurement are supported
Language: Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish
Working temperature:-10℃~75℃
Storage temperature:-45℃~85℃
IP rating:IP54

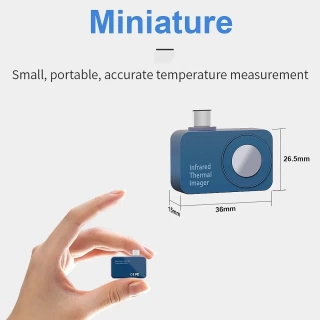

Dimensions:25mm x40mm x14mm
Net weight:23g
Notice: Using mobile phone thermal imaging in normal environments (prohibited in harsh environments such as high temperature and high magnetism)

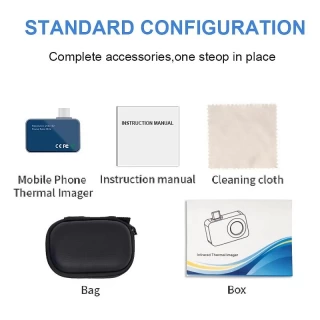

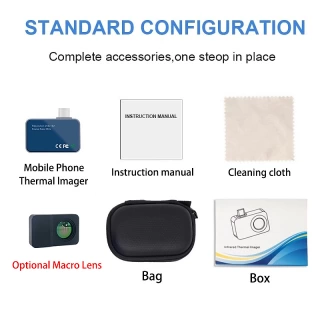

Package List:
1 x Thermal Imager
1 x English User Manual
1 x Cloth
1 x Box
1 x Storage Bag
