NOTICE: Be sure to check every tip on the product details page before you order, and it is recommended that you check all the bad reviews about it, which will help you decide whether to buy it or not. We have repeatedly stressed that it is just a toy, the resolution is poor, the refresh rate is poor, you can not use it to do some detection work.

The resolution of this product is only 32*24, which is a very low resolution, which can only be used for simple temperature measurement, and can not be used to detect the situation of floor heating, wall water leakage, water pipe leakage, etc., and can not be used for occasions with high accuracy requirements, such as repairing mobile phones.

If you need a high-precision product, don't buy it. It's just a simple cheap toy for measuring temperature.

Before you buy please know:

It can't photograph small animals at night!

It cannot be used for accurate temperature measurements!

It cannot be used to find electronic motherboards for hot spots!

It cannot be used as a camera!

It cannot be used to find hidden cameras in hotels!

It has a low refresh rate (check out our video)!

Its best use distance is within 1 meter! Cannot be used to detect temperature from a distance!

The sensor has a total of 768 (32x24) pixels to measure temperatureso even when facing a white wall,it interface will show a lot of different temperatures and colors,and the temperature displayed on the screen will fluctuate all the timenot static, which is normal.

Because the temperature of any object in different locationscan not be exactly the same,

the temperature will always fluctuate,and the sensor can accurately detect small changes in temperature.This is normal,

please do not misunderstand this is a product problem.
Features:

1. Module: MLX90640_CSB

2. Use MLX90640ESF_BAB IR Sensor

3. Resolution : 32x24

4. Temperature measurement range : ‐40℃~300℃

5. Measurement accuracy : +/‐2℃(Central area,0~100℃)

6. Operate temperature : 10℃~50℃

7. Operate humidity: <=70%

8. Refresh rate : 8HZ

9. No need to calibrate

10. FOV : 55°x35°

11. Display center point ,maximum and minimum temperature

12. Make photo(Can saved 90PCS photos, connect to computer, copy and delete)

13. Rechargeable Battery

14. TFT size : 1.8inch(display resolution：160x128)

15. Product size : 66x46x20mm

16. Power port : USB Type‐C    5V/1A

17. Built-in 4M memory chip, which can store about 90 pictures

Operate description:

1. Charging : Use USB Type‐C line, 5V/1A

2. Open/Close : Press Middle Key Long

4. Make photo: Press Middle Key

5. Review photo: Press Up or Down Key

6. Quit photo: Press Up or Down Key Long

7. Copy photo : connect computer with usb line, computer will get a disk.

Note: can not change photo in disk or put other file into the disk. Before

connect computer , pls fully charged and shutdown.

Package included:

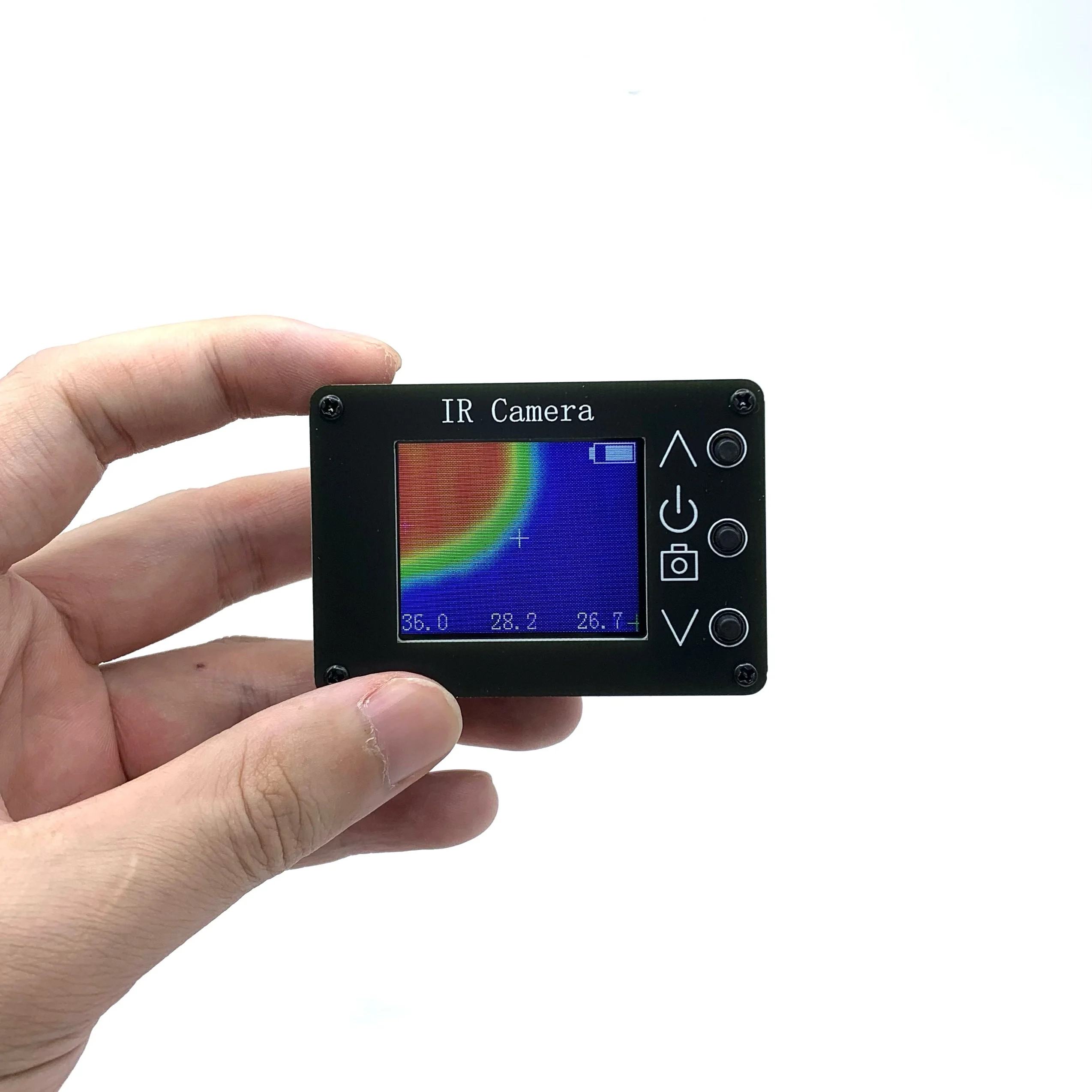

1 x Mini Thermal Imager
