Thermal Imaging Camera Module AMG8833 IR Infrared Thermal Imager Handheld Array Temperature Measurement Sensor
Description
Thermal Imaging Camera Module AMG8833 IR Infrared Thermal Imager Handheld Array Temperature Measurement Sensor
Feature:
1. USB POWERED: This IR thermal imaging camera module can be directly powered by USB 5V to generate infrared images, easy to operate.2. EXCELLENT CHIP: Using AMG8833 infrared thermal sensor, the resolution is 8x8, and the maximum human body sensing distance is 7 meters.
3. GOOD PERFORMANCE: The thermal imager has high performance and high output resolution, sensitive and reliable, with strong practicability.
4. COMPACT SIZE: The infrared temperature sensor is equipped with shells, with small and compact structure, which is easy to install and use.
5. FOR ELECTRONICS: Infrared thermal imager has a measurement temperature of 0‑80°C and is widely used in testing electronic products.
Specification:
Item Type: Infrared Thermal ImagerMaterial: PCB
Temperature Accuracy:
High Performance Type High Gain: Typical ±2.5℃ ±4.5℉
High Performance Type Low Gain: Typical ±3.0℃ ±5.4℉
Human Detection Distance: Approx. 7 meter / 23ft or less (reference value)
Measuring Temperature: 0-80℃
Viewing Angle: Typical 60°
Optical Axes Gap: Within typical ±5.6°
Current Consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand by mode)
Setup Time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of Pixel: 64 (vertical 8 x horizontal 8)
External Interface: 1⊃2;C (fast mode)
Frame Rate: Typical 10 frames/sec or 1 frame/sec
Operating Modes: Normal, Sleep, Standby (10s or 60s flash)
Output Mode: Temperature Output
Calculation Method: No moving average or twice moving average
Temperature Output Resolution: 0.25℃/32.45℉
Number of Sensor Addresses: 2 (1 address c slave address)

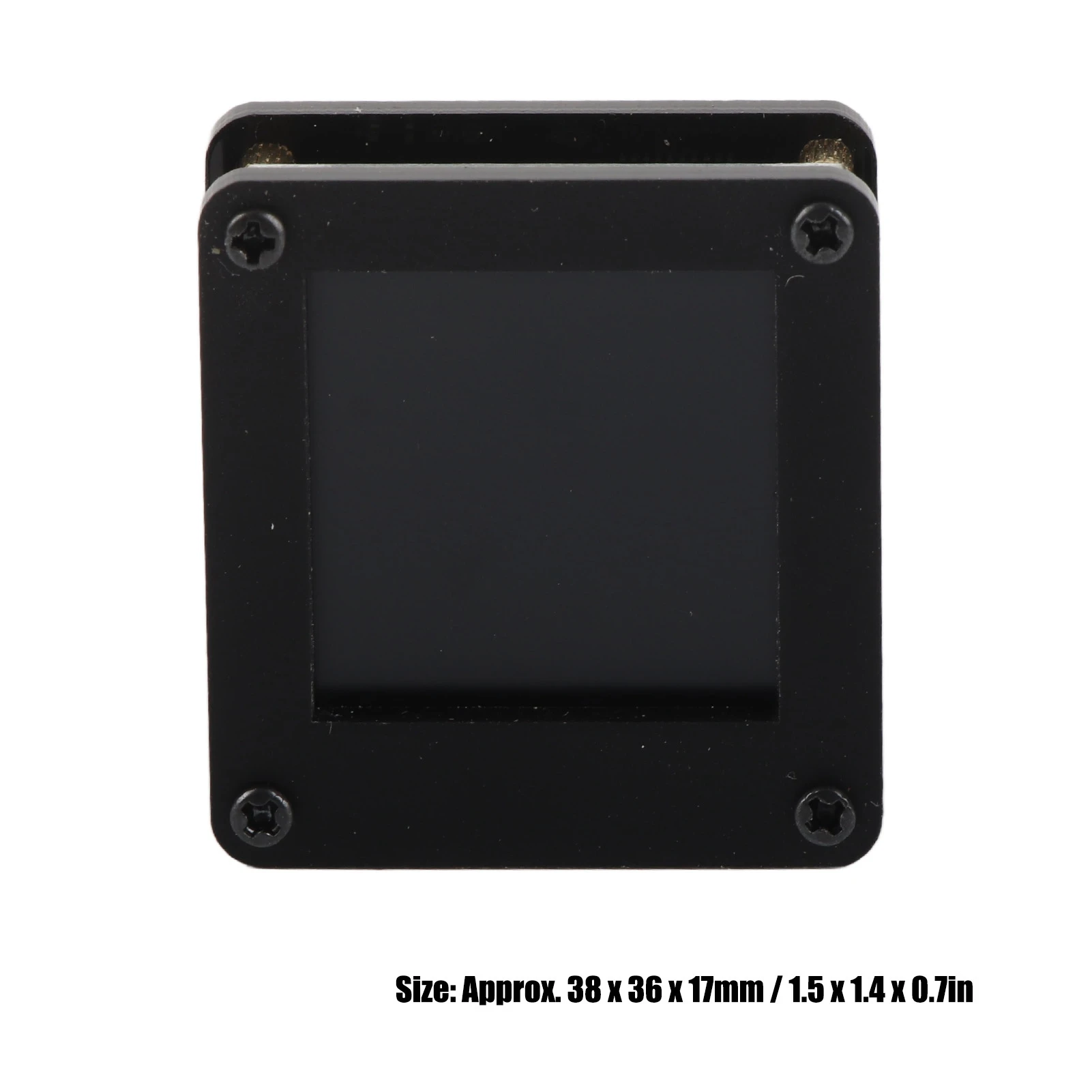

Size: Approx. 38 x 36 x 17mm / 1.5 x 1.4 x 0.7in
Weight: Approx. 19g / 0.7oz
Package List:
1 x Infrared Thermal Imager with ShellNote:
Powered directly by USB 5V, it can be used when plugged in.
