NEW Handheld Multifunction 2.8 Thermal Imager MLX90640 Digital Infrared Thermal Imaging Temperature Detection Tool

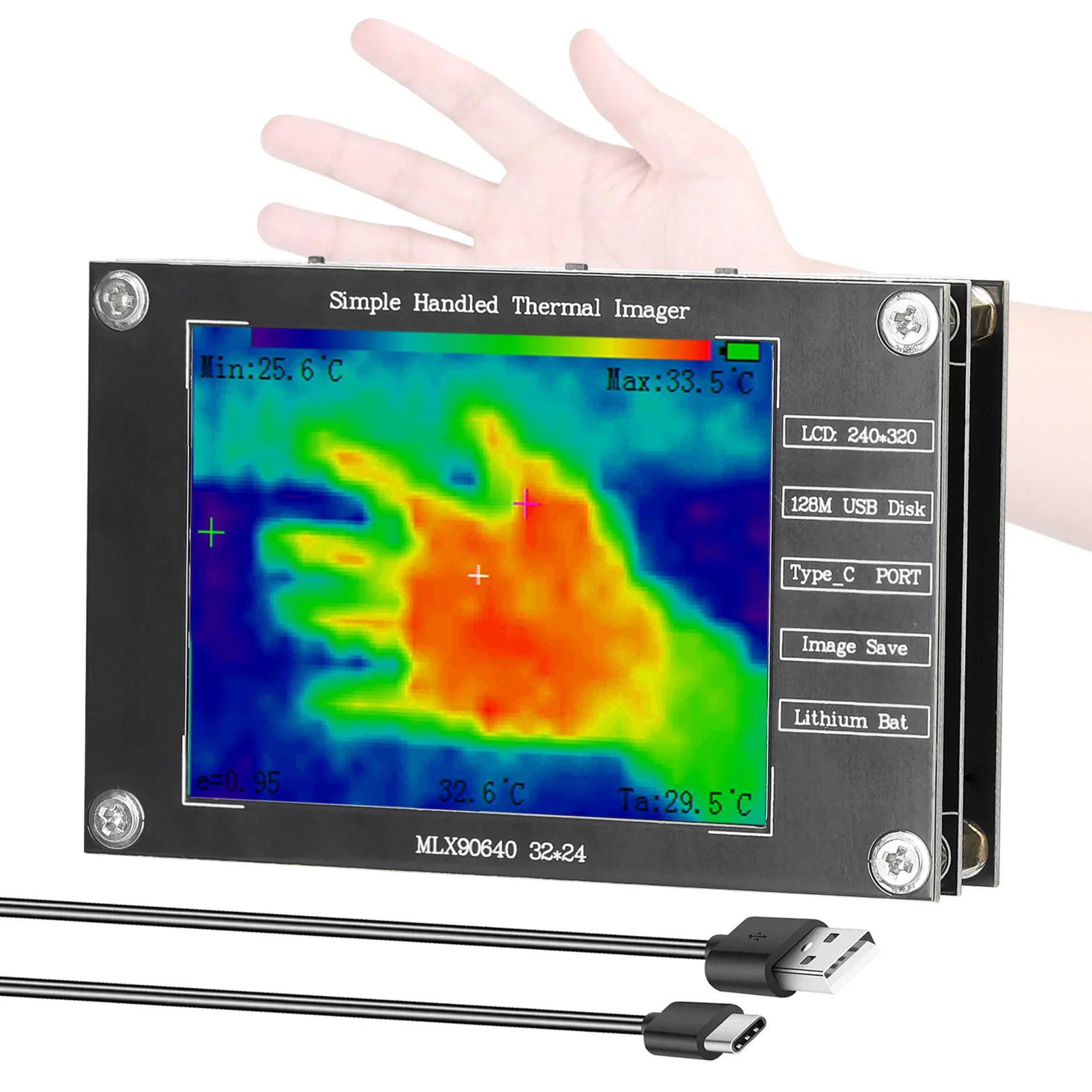

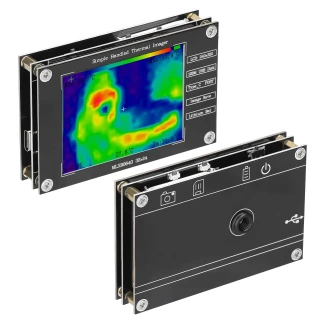

This is a handheld multi-function thermal camera.

It has the characteristics of small size and light weight.

With a 2.8TFT display, the data is clear at a glance. It can be used in a variety of occasions and is an indispensable tool for home and industrial use.

Features:

1. Measurement range -40 ° C to + 300 ° C, 8Hz dynamic refresh rate

2.2.8 screen definition is 320 * 240; the screen can display and track the highest temperature, lowest temperature and center point temperature

3. The shell is made of FR4 epoxy sheet, which better protects the internal components and has a long service life

4. Small size, easy to carry

5. Powered by lithium-ion battery. USB-C charging; up to 4 hours of battery life. Can be used while charging

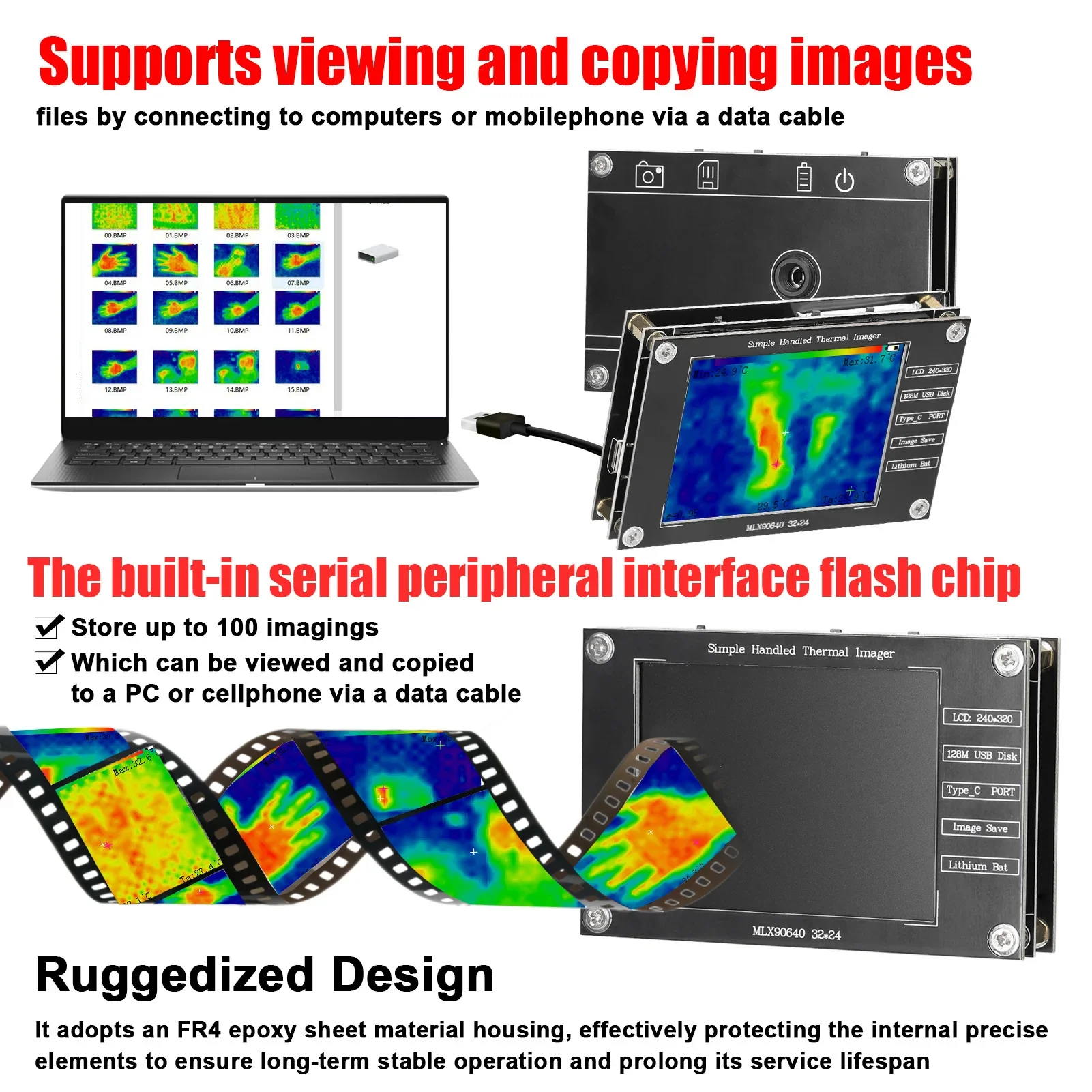

6. Built-in SPI Flash chip, can store 100 pictures. Connect a computer or mobile phone through a data cable to view and copy image files

7. Integrated design, no external equipment required

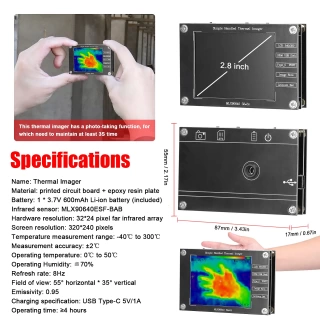

Specifications:

Material: Epoxy board + printed circuit board

Infrared sensor: MLX90640ESF-BAB

Hardware resolution: 32 * 24 pixel far infrared array

Screen definition: 320 ° 240 pixels

Temperature measurement range: -40 ℃ to 300 ℃

Measurement accuracy: ± 2 ℃

Operating temperature: 0 to 50 ° C

Working humidity: ≤ 70%

Refresh rate: 8Hz

Field of view: 55 ° horizontal x 35 ° vertical

Emissivity: 0.95

Charging specifications: USB Type-C5V/1A

Product size: 85 * 55 * 30mm

Battery: 3.7V 600mAh Li-ion battery

Working hours: ≥ 4 hours

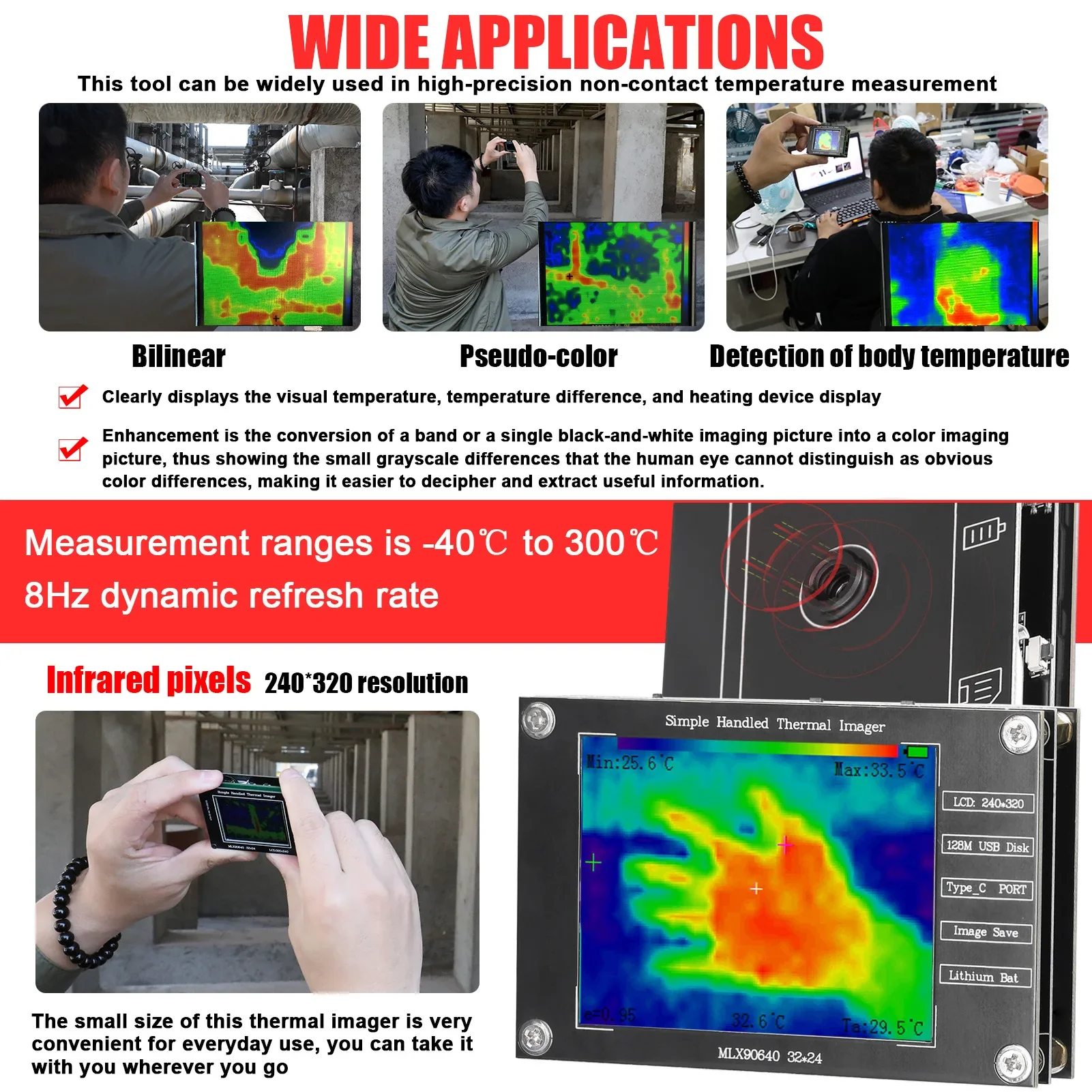

Application:

High-precision non-contact temperature measurement

Security and intrusion detection

Body temperature detection

Intelligent building environmental temperature measurement and control

Automotive air conditioning control

Microwave oven and oven temperature detection and control

Temperature monitoring for industrial parts

Visual temperature sensor

Floor heating equipment side leakage and maintenance

Thermal detection of circuit boards and components

Packing List:

1 * Thermal Imager

1 * mirror cloth

I*USB Type-C

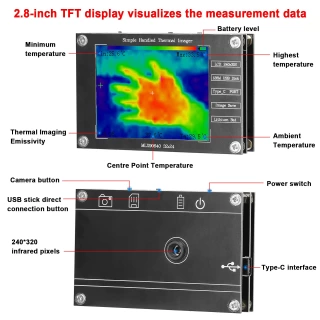

This device adopts an integrated design and can work without external equipment. The screen display parameters are as shown in the figure below

Take a photo: In the power-on state, press the take a photo/reset button to save the current image.

View or copy images: After connecting to the computer with a USB-C data cable, press the mode switch button to switch to U disk mode to read or copy images.

Reset: The fuselage can store 99 images. When the storage is full, press and hold the photo/reset button to release when the screen flashes, and the device will be reset. After about 15 seconds, the initial state can be restored.

Notes:

This device is powered by a 3.7v lithium battery. It is recommended to keep the battery power display at about 50% before not using it for a long time. This device adopts an integrated design and can work without external equipment. The screen display parameters are shown in the figure below

Take a photo: In the power-on state, press the take a photo/reset button to save the current image.

View or copy images: After connecting to the computer with a USB-C data cable, press the mode switch button to switch to U disk mode to read or copy images.

Reset: The fuselage can store 99 images. When the storage is full, press and hold the photo/reset button to release when the screen flashes, and the device will be reset. After about 15 seconds, the initial state can be restored.

Precautions: This device is powered by a 3.7v lithium battery. It is recommended to keep the battery power display at about 50% before not using it for a long time.
