MaAnt 256*192 Infrared Thermal Camera With Display Screen Thermal Imaging Analyzer for PCB Leakage Short-circuit Detection Tool

MaAnt RC-3 RC-4 Infrared Thermal Camera 256*192 Thermal Imaging Analyzer Macro Lenses for PCB Leakage Short-circuit Detection


Software download link: www.antxin.com



MaAnt RC-3 RC-4 Hawkeye 256*192 Infrared Thermal Imager PCB Diagnosis instrument



Description

MaAnt Hawkeye RC-4 mobile phone infrared thermal imaging camera used with Android Phones type-c port for fast diagnose motherboard failures. MaAnt RC-3 3D infrared thermal imager motherboard short circuit analyzer PCB fault rapid diagnosis instrument, can be connected to mobile phone and computer. MaAnt RC-3 RC-4 256*192 infrared pixels thermal camera motherboard fault quick diagnosis for mobile phone PCB BGA SMD chips repair, like leak/power inspection and

short-circuit detections




MaAnt RC-3 Specification:

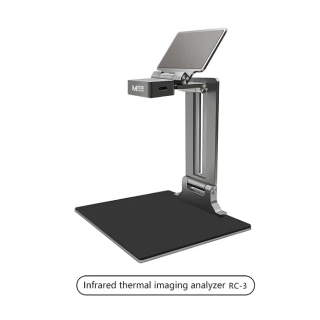

Model: MaAnt RC-3 Infrared thermal imaging analyzer.

Resolution: 256*192.

Frame rate: 25Hz.

Lens Angle: 56°x42.

Temperature measurement distance: 3mm-15mm.

Device port: USB Type-C.

Input voltage: DC 5V.

Temperature range: -15℃-600℃ (5℉-1112℉).

Storage temperature: -20℃-60℃.

Operating temperature: 0℃-50℃.

Product size: 150*150*230mm

Net weight: 591g.

Please note: HD 30mm Macro lens needs to be purchased separately.




MaAnt RC-4 Specification:

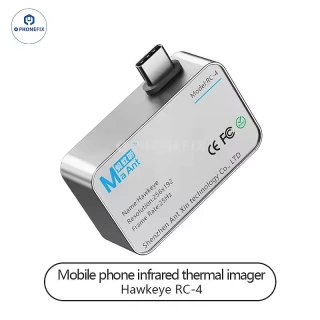

Model: MaAnt Hawkeye RC-4 thermal imaging camera.

Resolution: 256*192.

Operating wavelength: 8~14 μm.

Frame rate: 25Hz.

NETD: <50mk@25°C.

FOV: 56° x 42°.

Lens: 3.2mm.

Temperature range: -15°C~600°C.

Temperature measurement accuracy: ±2°C or ±2%.

Temperature measurement: Maximum, minimum, center point and zone support temperature measurement.

Palette pattern: lron red, black heat, white heat, rainbow, blue heat, red heat.

Language: Chinese, English, Russian, German, Italian, Portuguese, Japanese, French, Spanish, Finnish, Polish, Korean.

Operating temperature: -10°C~75°C.

Storage temperature: -45°C~85°C.

Waterproof type: IP54.

Product size: 40mmx25mmx14mm.

Package size: 111mmx79mmx53mm.

Product weight: 23g.

Gross product weight: 162g.




MaAnt Hawkeye RC-4 Features:

1. Hawk Eye RC-4 mobile phone infrared is available for Android, 256*192 infrared pixels are clearer.

2. The ideal thermal imager for engineers, 8mm macro temperature, measurement king, can see 0.25mm electronics.

3. 25Hz high frame rate, the picture is smooth and low latency, and the temperature is quickly refreshed.

4. High resolution 265*192, high resolution, rich in detail, clearly visible.

5. Vanadium oxide detector, high resolution preserves more detail.

6. Clear observation without fatigue 56° large viewing angle, easy to observe large area, can quickly scan the target, locate the heat source, improve work efficiency.

7. Bid farewell to tradition, single temperature measurement mode photo/video can be saved, which is more advanced and convenient.

8. Heat and cold tracking, automatic temperature tracking function, hot and cold temperature at a glance.

9. Plug and play, no charge, not controlled by the power supply, the phone can be used with electricity.

10. Temperature range, minimum temperature -15℃, maximum temperature 600℃.

11. 6 color palettes multi-color imaging effect, six color palettes, free to choose different modes for different scenes.

12. The technology is tiny and small, small and portable, full of technology, and accurate temperature measurement.

13. The multi-application range can be used in circuit maintenance, pipeline inspection, automotive troubleshooting, anti-snooping, and other areas.

14. APP interface analysis, the interface is clear and easy to understand, and the automatic tracking function is clear at a glance.

15. Accurate temperature measurement with environmental correction.




MaAnt RC-3 Features:

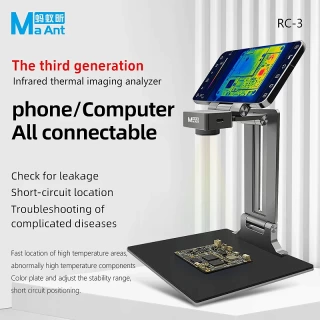

1. Ultra clear detail, panoramic view, the third generation infrared thermal imaging analyzer, check for leakage, short-circuit location, complicated and complicated disease.

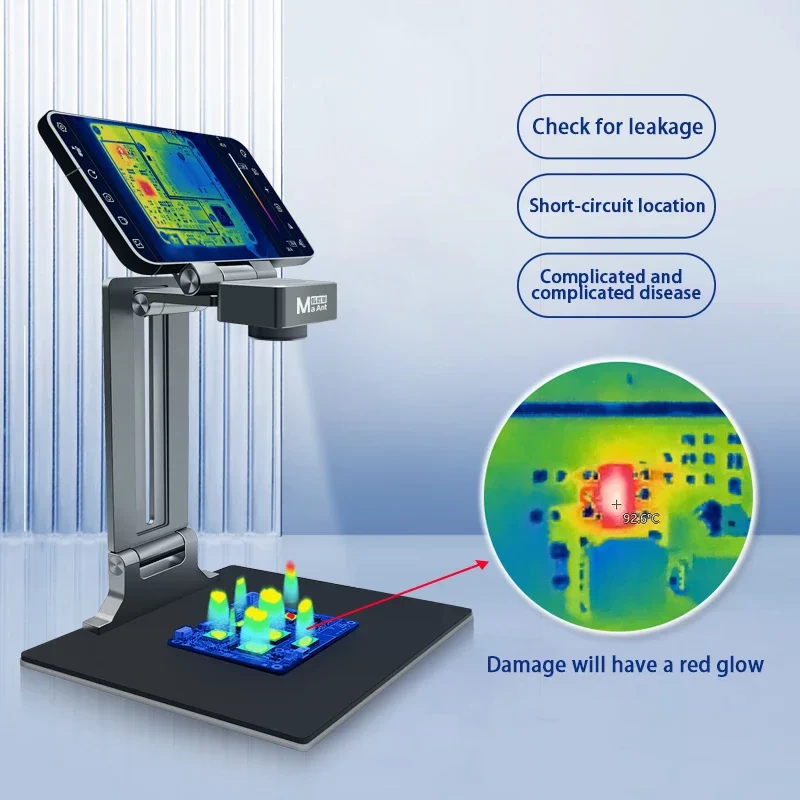

2. A quick check of leakage, open circuit positioning, difficult speed rower, fast location of high-temperature areas, abnormally high-temperature components, color plate and adjust the stability range, short circuit positioning.

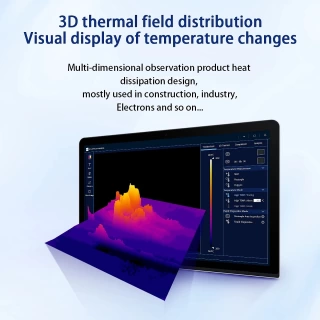

3. 3D thermal field distribution, visual display of temperature changes, multi-dimensional observation product heat dissipation design, mostly used in construction, industry, electrons, and so on.

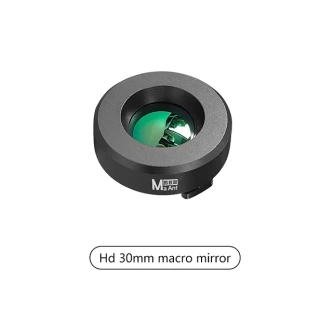

4. Optional HD 30mm macro mirror, the local details of the item can be enlarged to easily detect the motherboard, abnormal areas, quickly troubleshoot problems

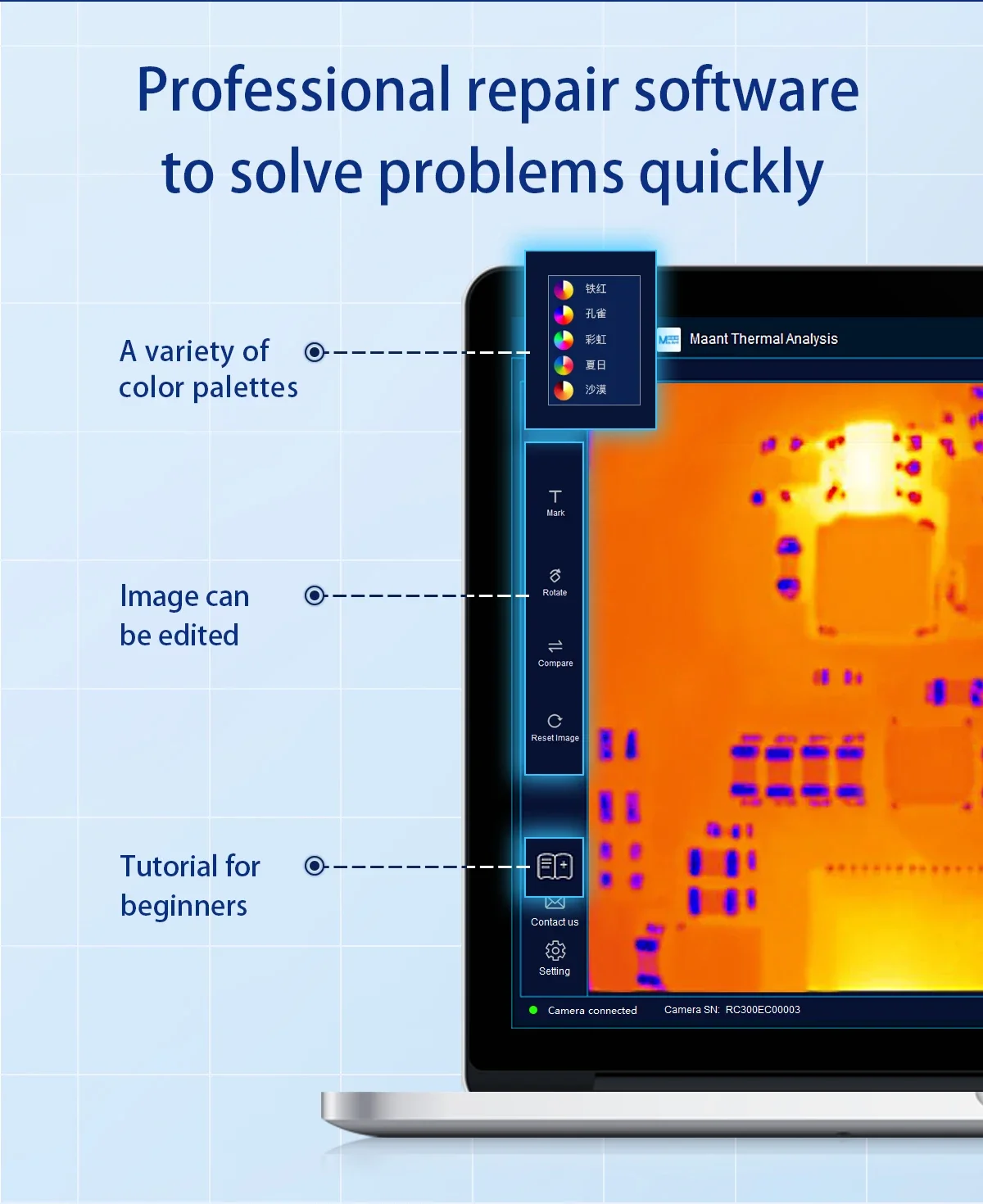

5. Professional repair software to solve problems quickly, multiple palette modes, and different swatches can be used according to different scenes.

6. Double board contrast mode, on both sides of the dividing line, puts the items that need to be observed and compared and carry out comparative analysis under the same conditions.

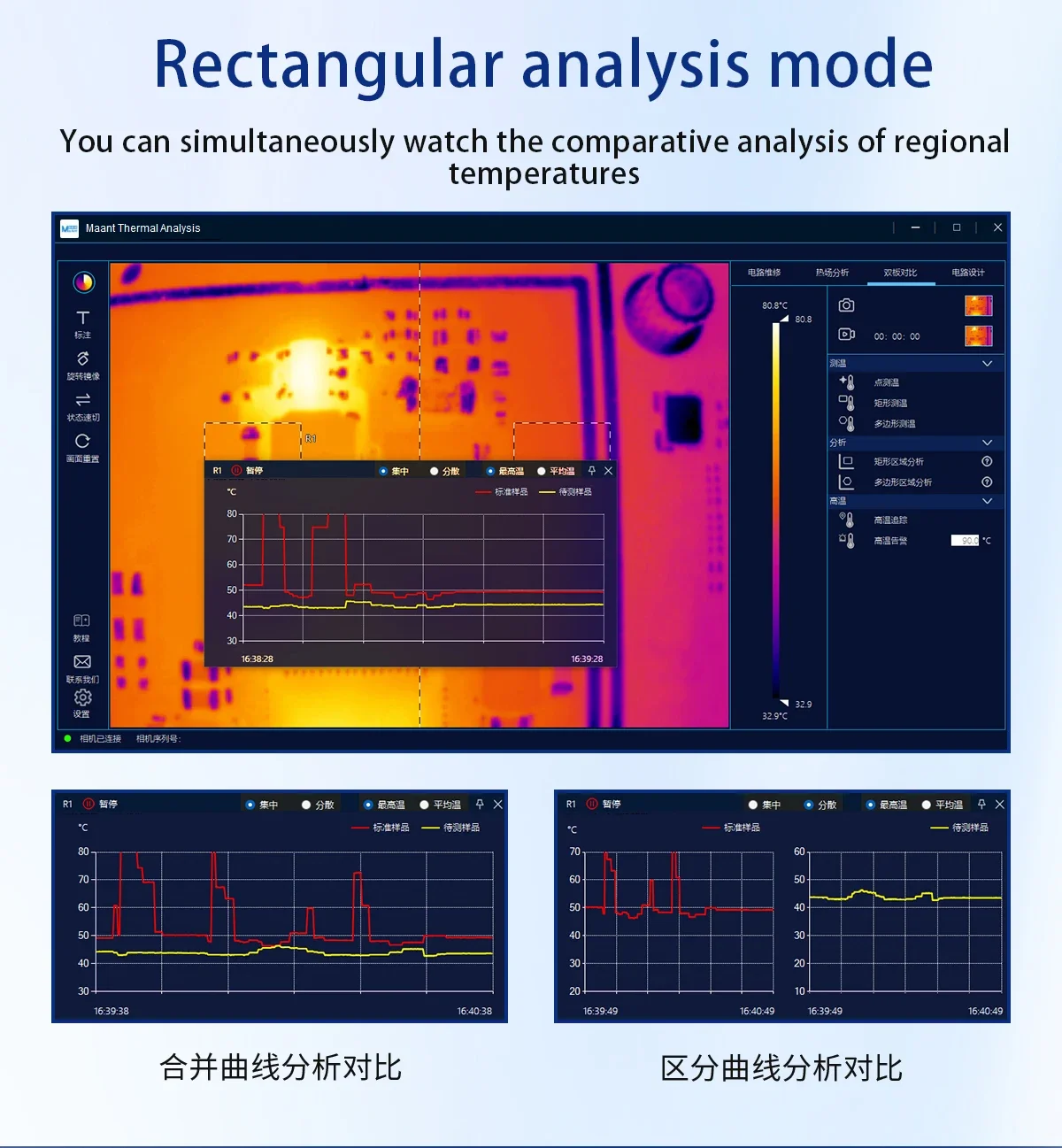

7. In rectangular analysis mode, you can simultaneously watch the comparative analysis of regional temperatures.

8. Adjustable lens height, the position can be quickly adjusted according to the needs of the item, and observe objects in detail from zero distance

9. High-temperature abnormal alarm, when the temperature alarm switch is turned on and the temperature threshold number is exceeded, a buzzer will sound an alert and the frame will flash with a red border.

10. Multi-platform applications are powered on with one key, after opening the software, connect the infrared thermal imaging to the computer via a USB cable

11. Press the top power button, and the software interface will appear in the infrared effect, can support Win10 and above systems and mobile phone Android terminal.
