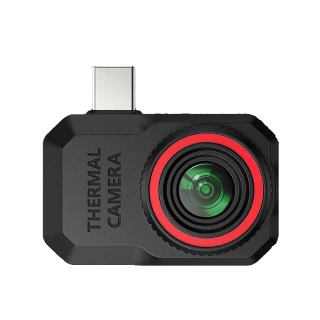

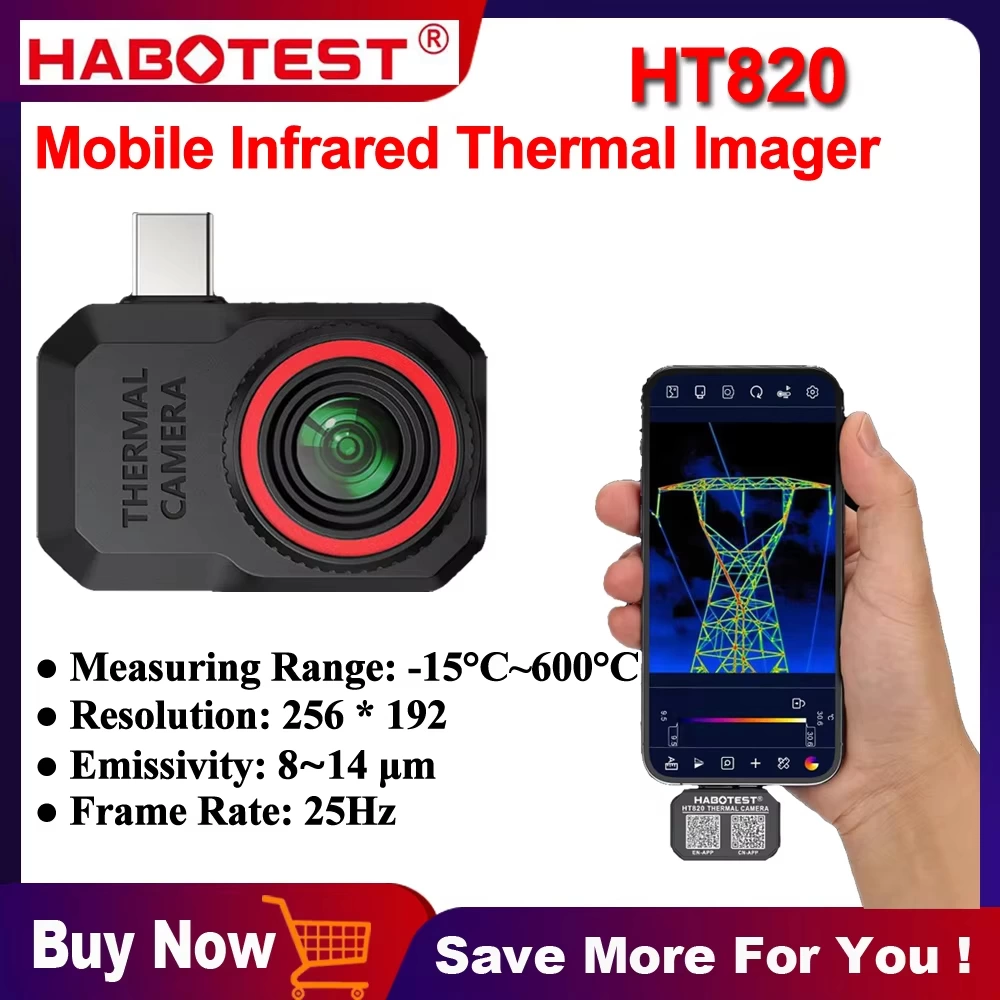

HABOTEST HT820 Thermal Camera for Android Infrared Thermal Imager Repair Thermographic Camera with High/Low Temperature Tracking

Overview:

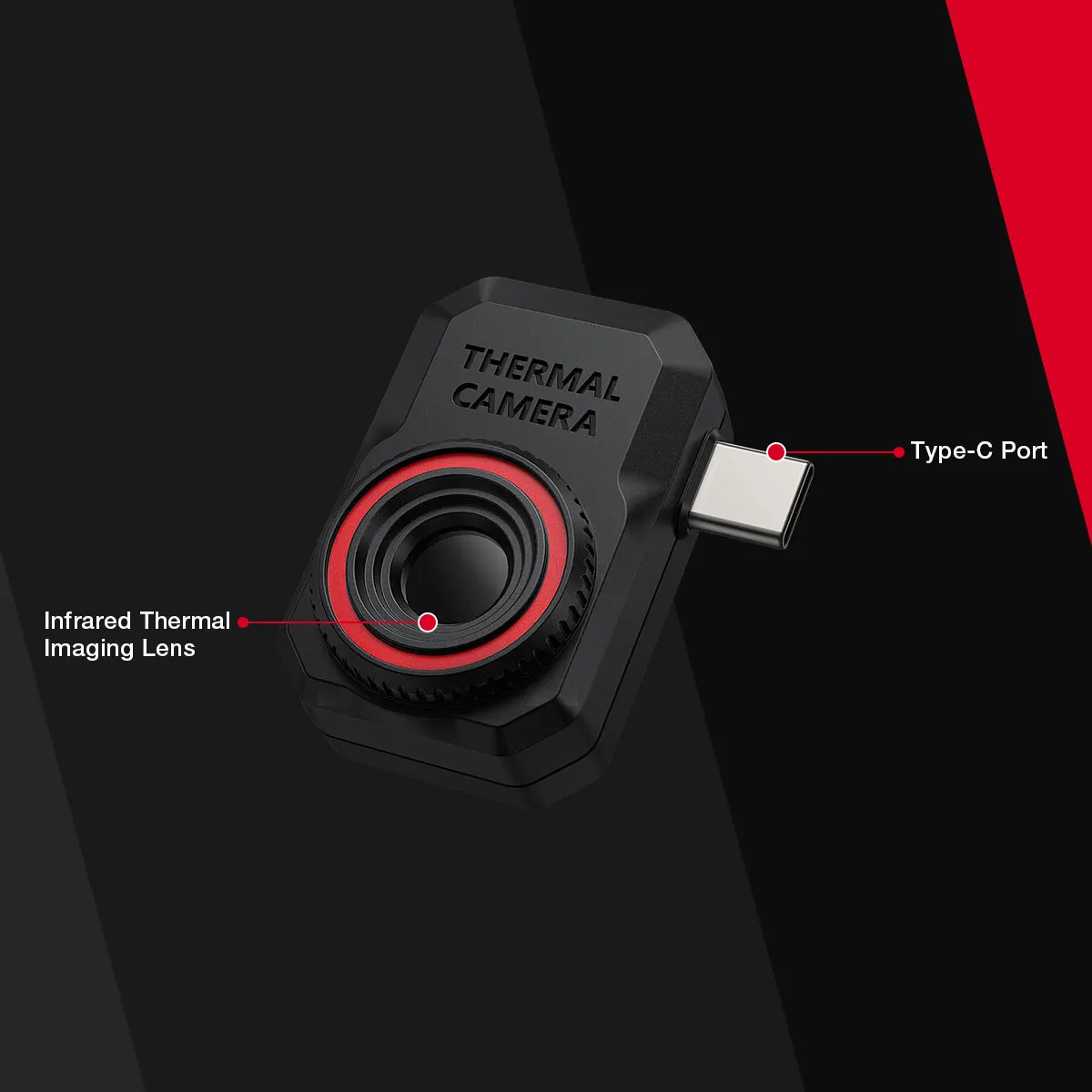

The mobile infrared thermal imager uses a high-resolution industrial-grade infrared detector with a small pixel pitch, paired with a 3.2mm lens. It is a high-precision, fast-response portable infrared thermal imaging analyzer. The product is lightweight, portable, plug-and-play, and works with a customized professional thermal imaging analysis app. It can connect to a mobile phone to perform infrared imaging of target objects, enabling professional multi-mode thermal image analysis anytime, anywhere.

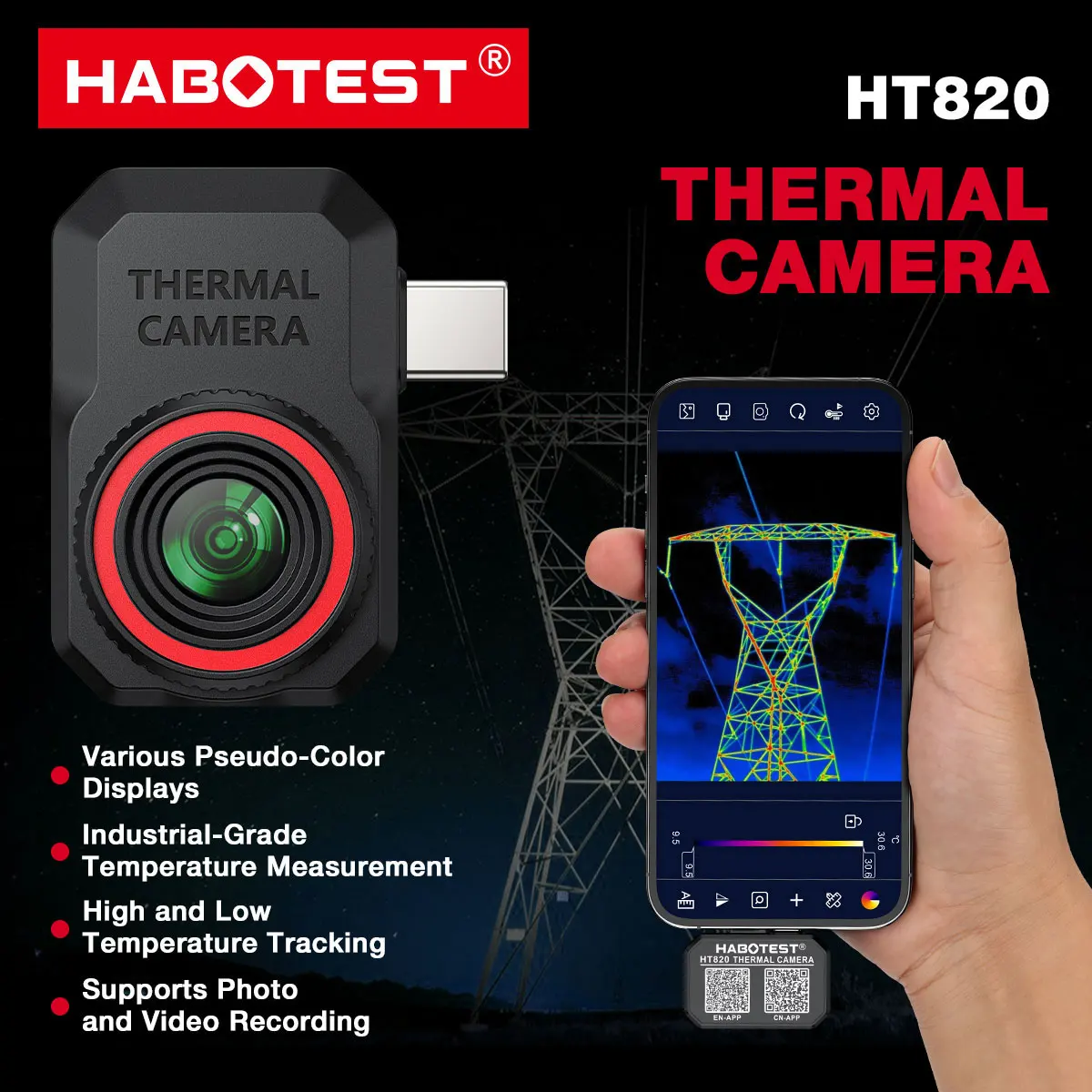

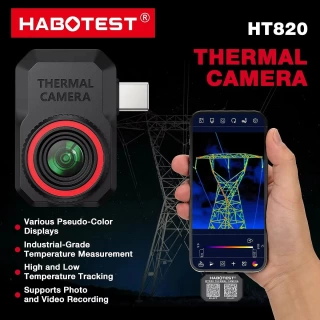

Features:

1. High-quality optical lens paired with a high-resolution detector for outstanding imaging performance.
2. Lightweight and portable, used with a mobile app for professional thermal imaging analysis anytime, anywhere.
3. Wide temperature measurement range: -15°C to 600°C.

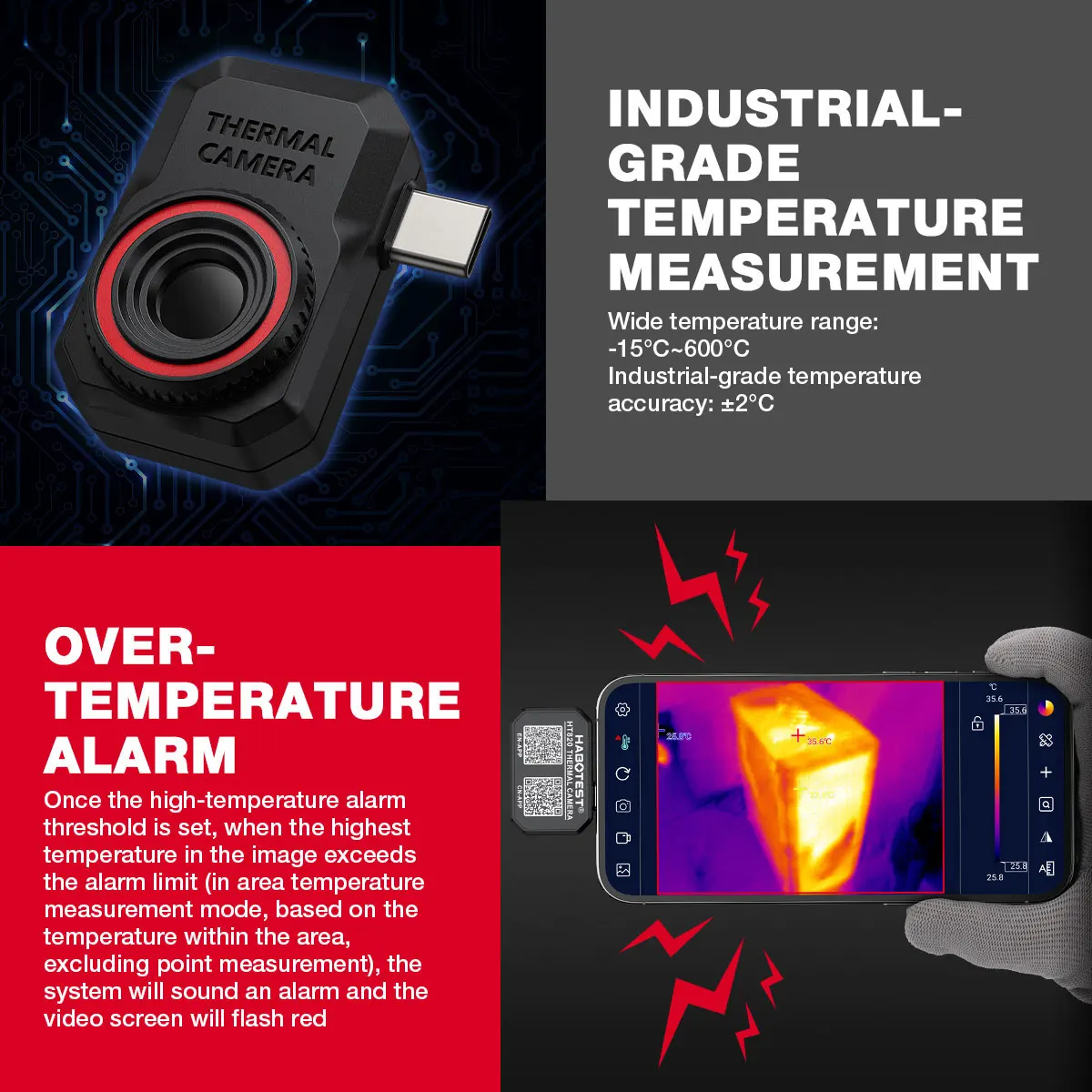

4. Supports high-temperature alarms with customizable alarm thresholds.
5. Supports displaying customized temperature ranges with multiple application scenarios for high-temperature areas.
6. Supports high and low-temperature tracking.
7. Supports adding points, lines, and rectangular boxes for area temperature measurement; lines and rectangular boxes support high and low-temperature tracking and high-temperature alarms.
8. Aluminum alloy housing, sturdy and durable.

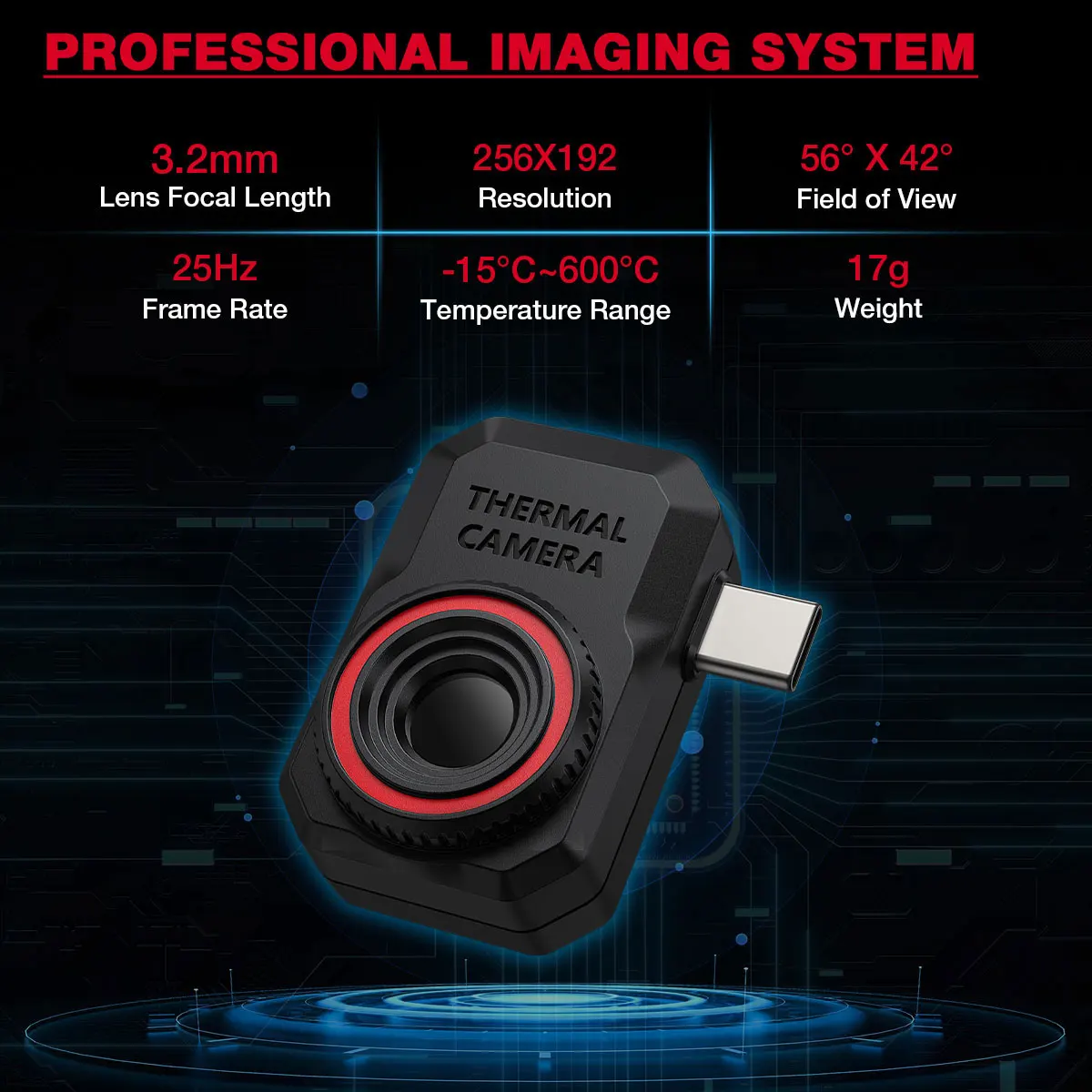

Performance:

- Brand: HABOTEST
- Product Name: Mobile Infrared Thermal Imager
- Color: Black

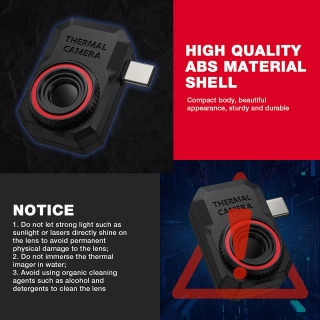

- Housing Material: ABS
- Resolution: 256x192
- Working Wavelength: 8～14 μm

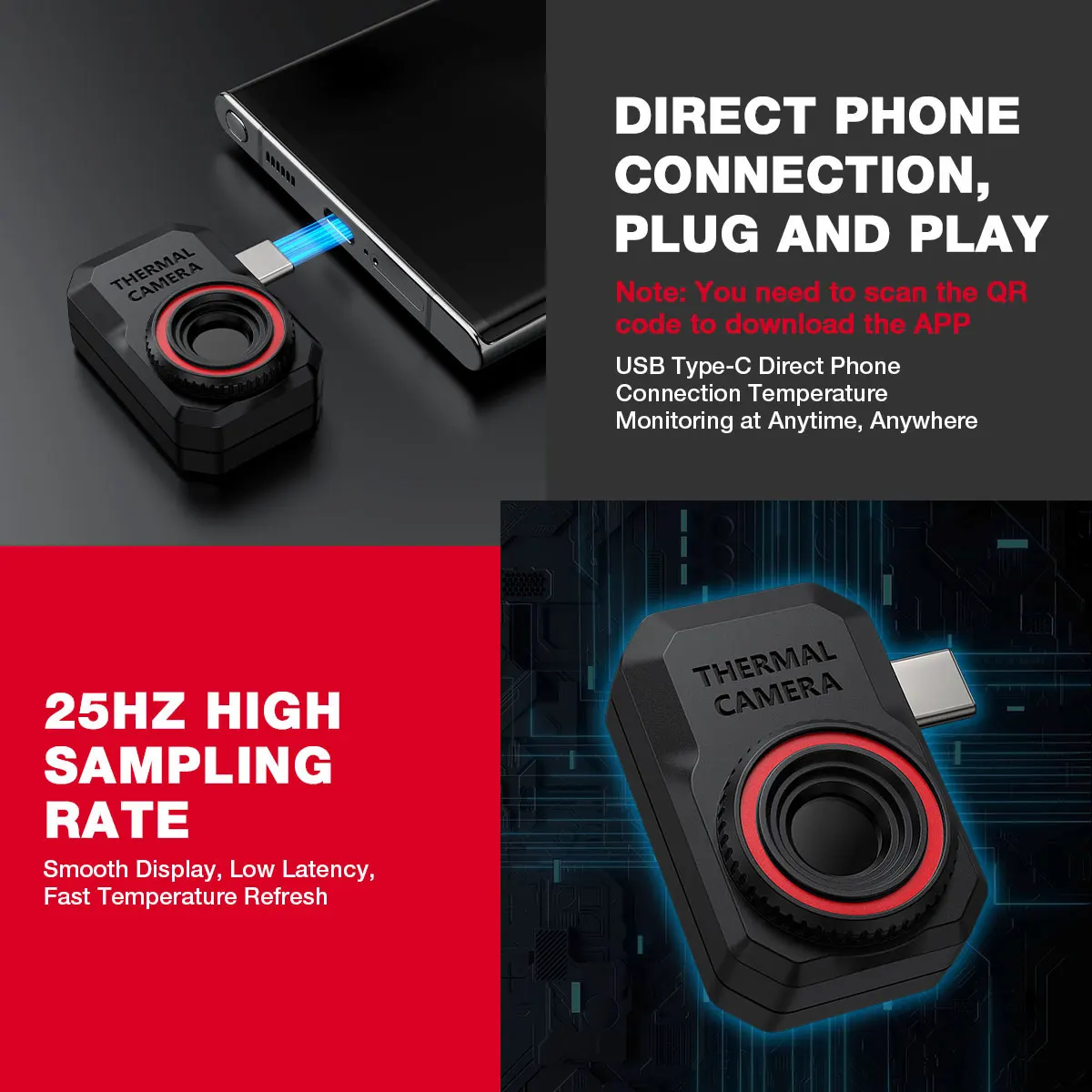

- Frame Rate: 25Hz
- NETD: <50mK @25℃

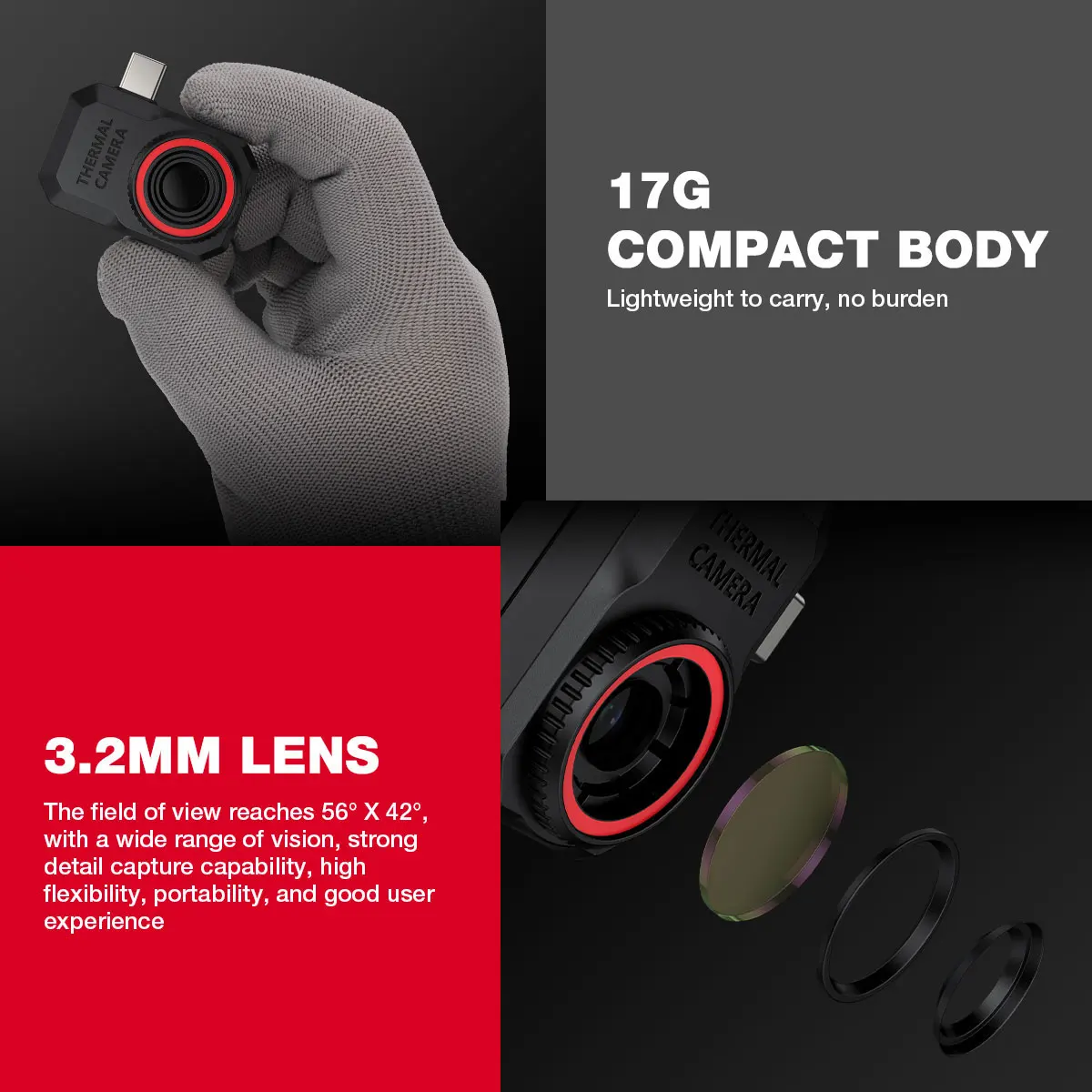

- Lens: 3.2mm
- Field of View: 56° x 42°
- Temperature Measurement Range: -15°C to 600°C
- Temperature Measurement Accuracy: ±2°C or ±2% of the reading
- Temperature Measurement: Supports automatic high and low-temperature tracking, center point temperature measurement, point temperature measurement, area temperature measurement, line temperature measurement, and temperature range viewing.
- High-Temperature Quick Check: Supports one-click quick check of high-temperature areas.
- Temperature Range Display: Supports
- Real-time Image Rotation: Supports

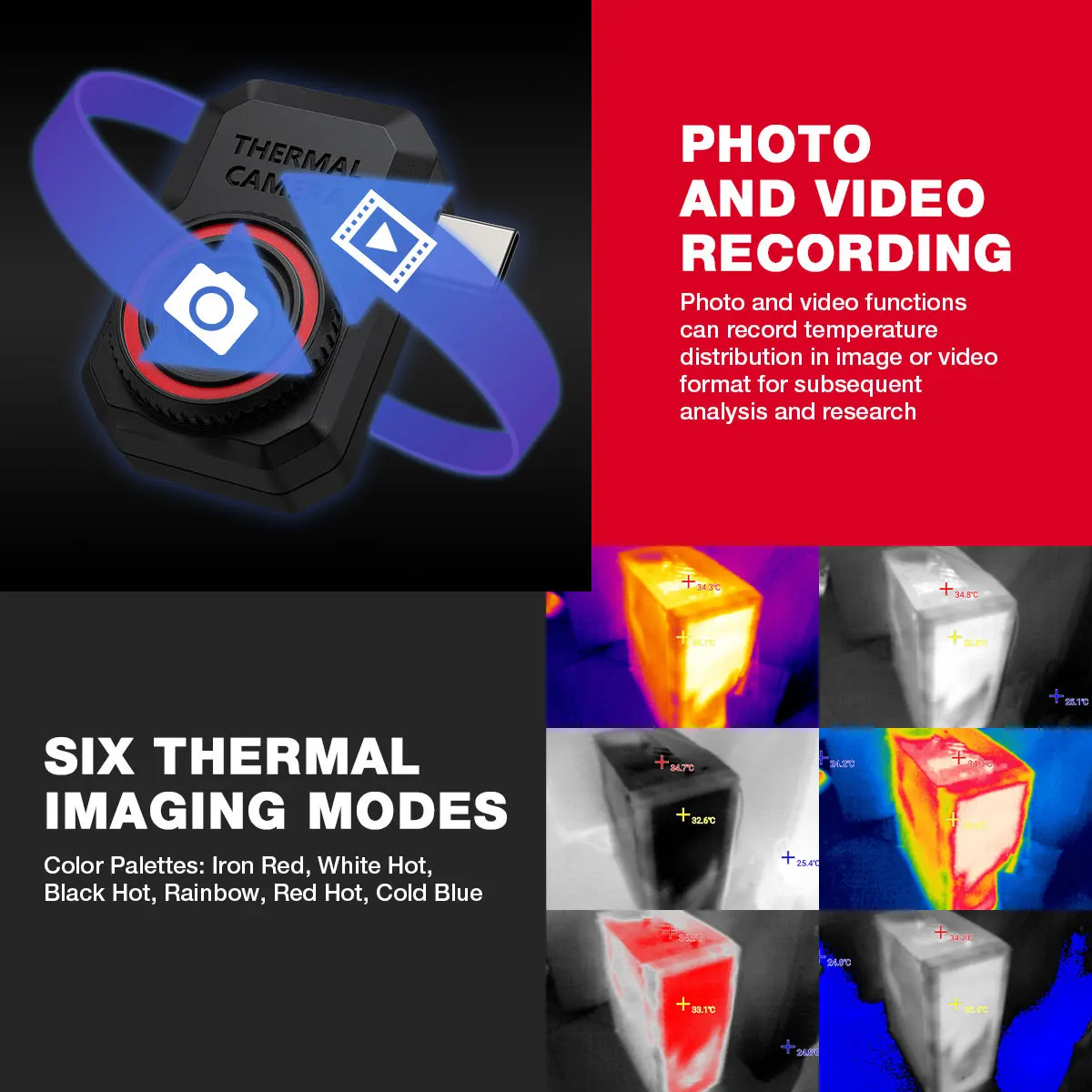

- Image Color Palettes: Iron Red, White Hot, Black Hot, Rainbow, Red Hot, Cold Blue
- Photography: Supports photography
- Video Recording: Supports video recording
- Image Editing: Supports image doodling and text annotations
- Settings: Professional thermal imaging parameter configuration, temperature units, language, high-temperature alarm settings.
- Operating Temperature: -10°C ~ 75°C
- Storage Temperature: -45°C ~ 85°C
- Waterproof and Dustproof: IP54

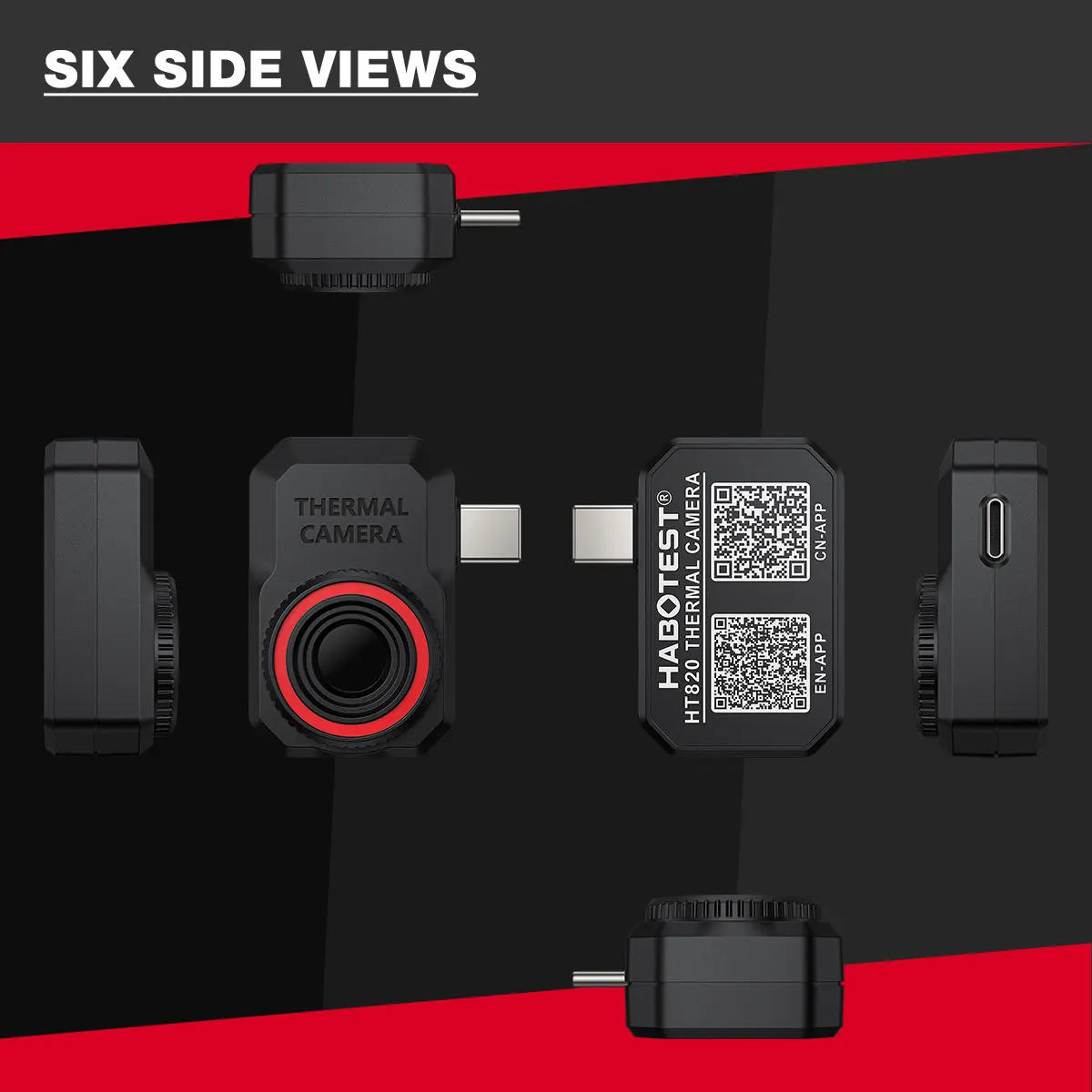

- Product Dimensions: 34 x 26.5 x 15mm
- Net Weight: 17g

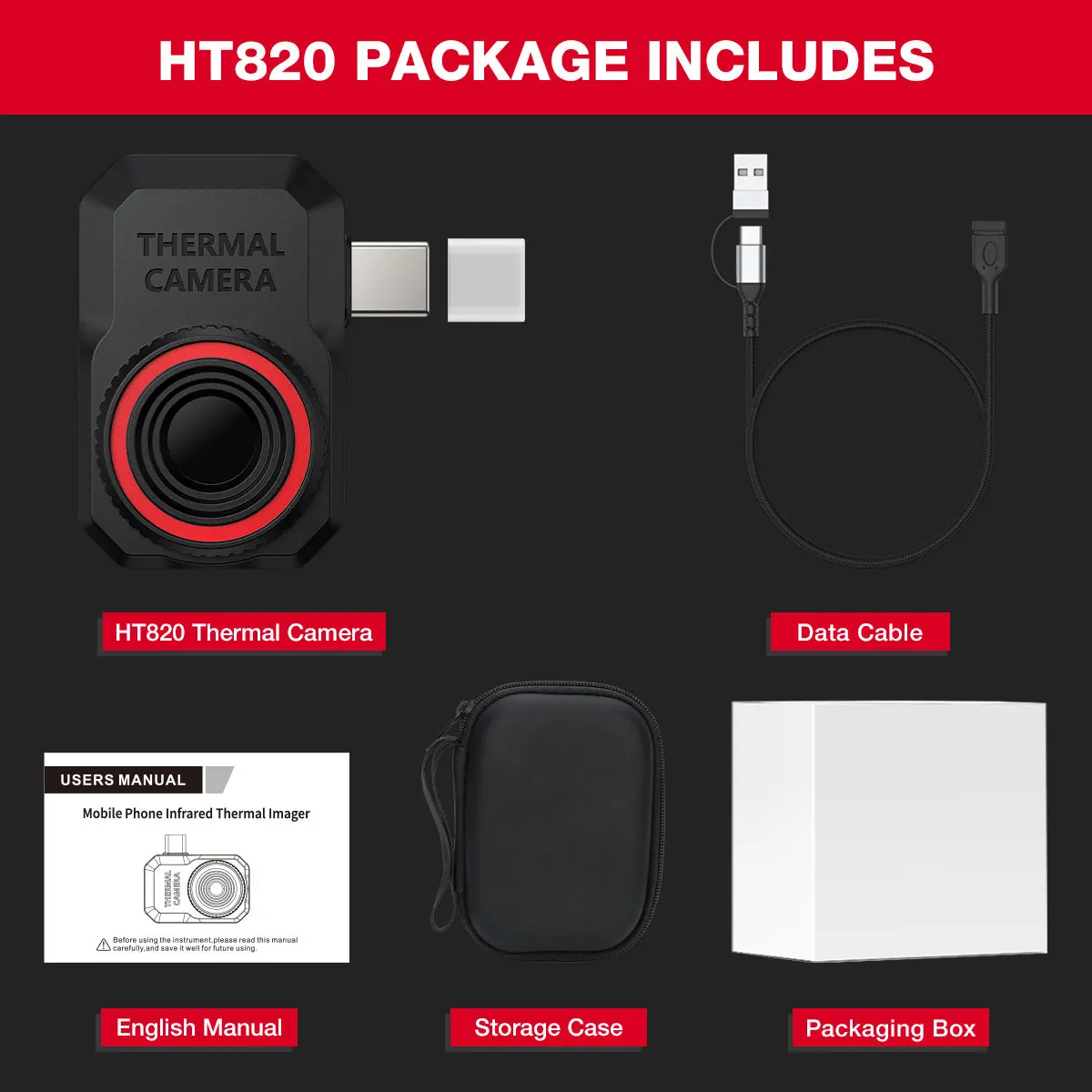

Package List:

1 x Mobile Thermal Imager
1 x Data Cable
1 x English Manual
1 x Storage Case
1 x Packaging Box

Note: the infrared thermal camera only supports Android cell phones
