ET11S Thermal Imager Multimeter 24x32 Thermal Imaging Camera AD/DC Voltage Resistance Diode Ohm Test Electronic Repair Tools

Note:

This product uses a resistive screen. It is recommended to use fingernails or a stylus instead of the skin of your fingertips when touching the screen.

The thermal imaging resolution is only 24x32 pixels, the pixels are low. It needs large temperature difference for imaging. It is suitable for observing general temperature distribution but not for complex inspection.

In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-2 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

Download link for PC software： http://doctuchuang.eirbio.cn/fr01/IR-DMM.rar

Features:

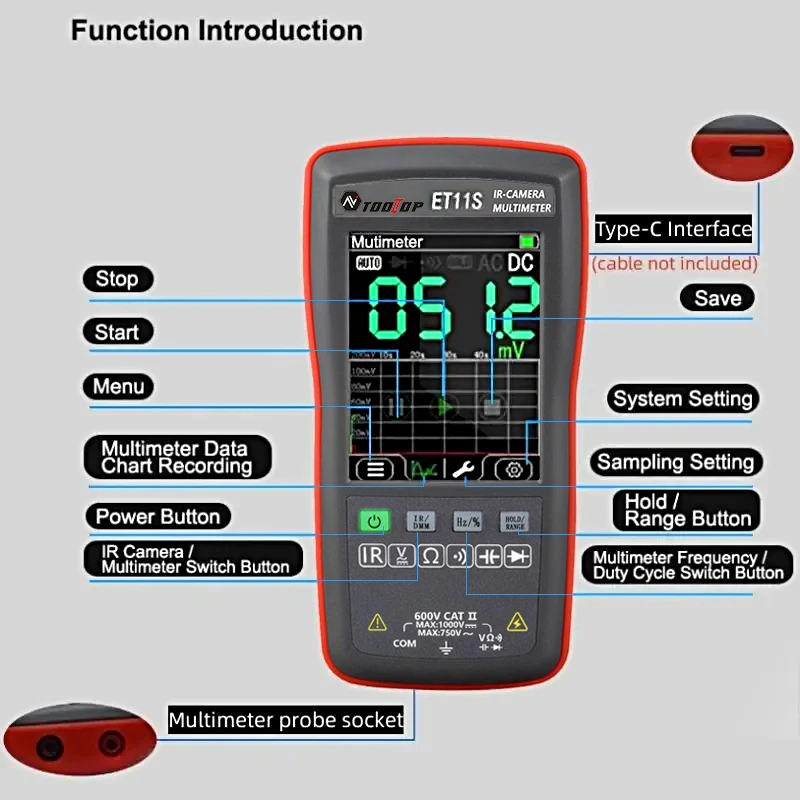

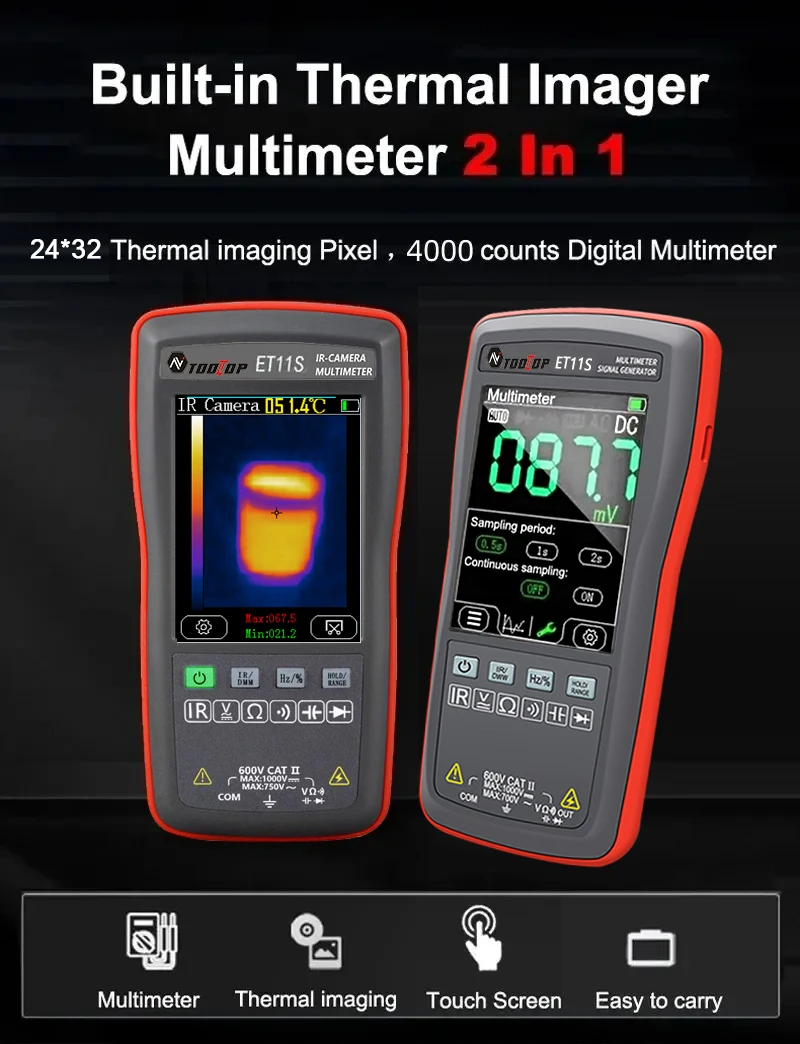

【 2-In-1 Function】: Thermal imager + Multimeter 2-In-1 ,One click switching between two functions, with compact and small size, light weight and easy to carry.

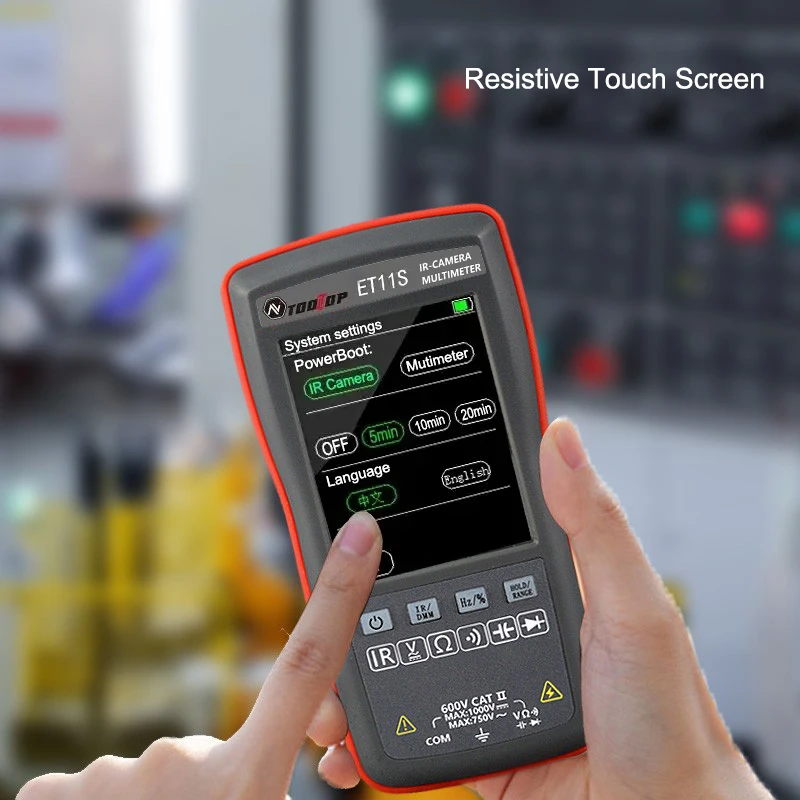

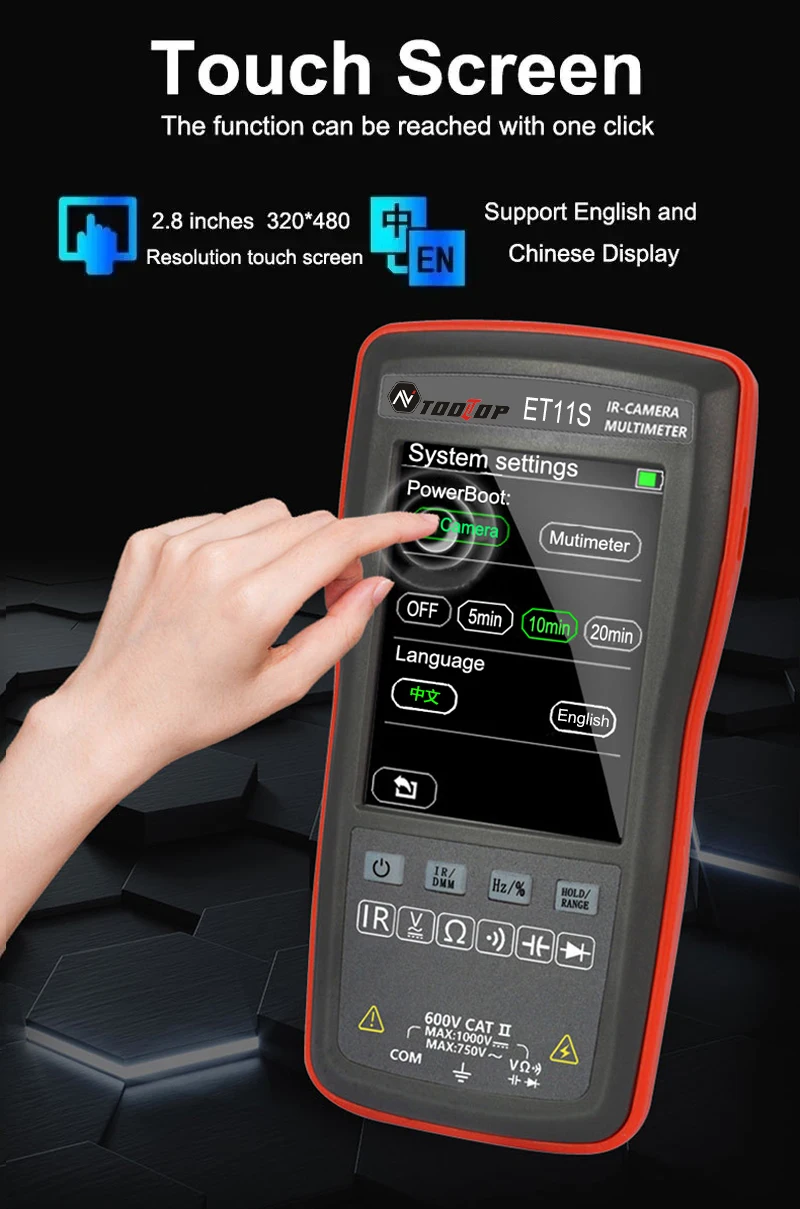

【Touch screen:】2.8 inches Resistive touch screen operation

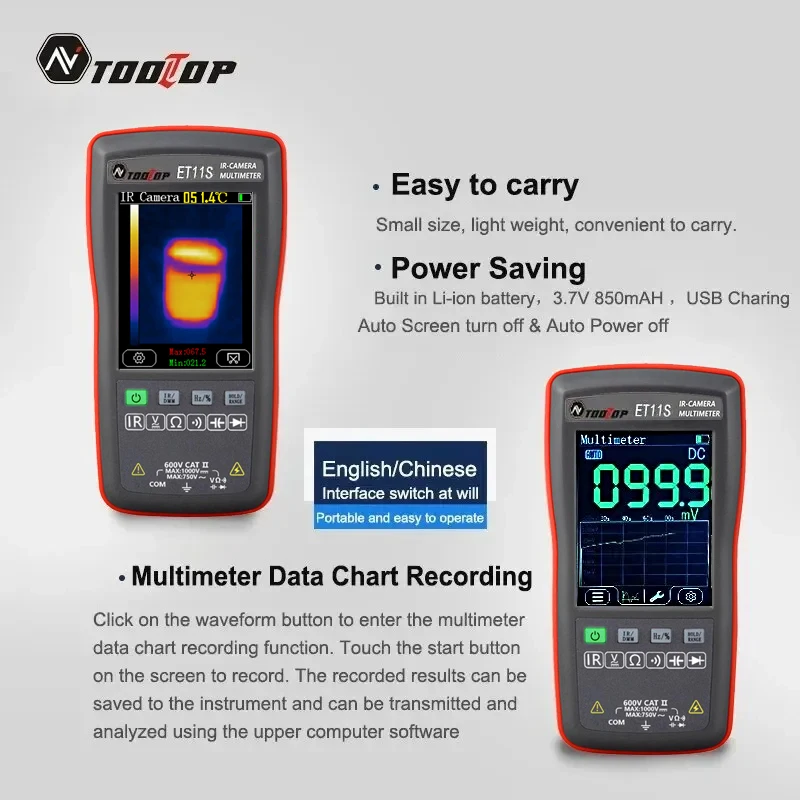

【Data transmission & PC software analysis 】:Under USB mode, it is possible to transfer locally saved thermal imaging images and the multimeter measurement result recording by data chart .And displayed on the computer through PC software.

【Multifunctional】: The multimeter can measure DC voltage, AC voltage, resistance, diode, on/off, capacitance, etc.

【Battery management】: built-in lithium battery (supporting USB charging), with automatic screen turn off and automatic power off functions.

Specifications:

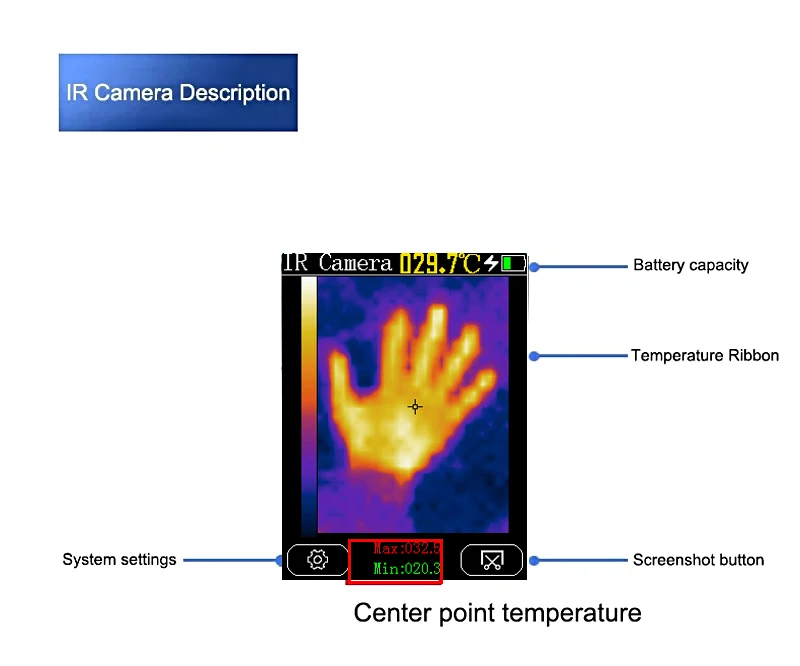

Thermal imager parameters

Sensor: Uncooled focal plane

lmage capture frequency:16Hz

Thermal imaging pixel: 24*32

FOV:55°(H)*35°(V)

Emissivity: 0.1-0.99 adjustable

Measuring range:-40~ +300℃

Mode: automatic gain

Color palette: Iron Red/Rainbow

Temperature measurement error:>0℃:±2℃/±2%; ≤0℃ ±5℃/±5%

Display temperature accuracy:0.1°C/0.1°F

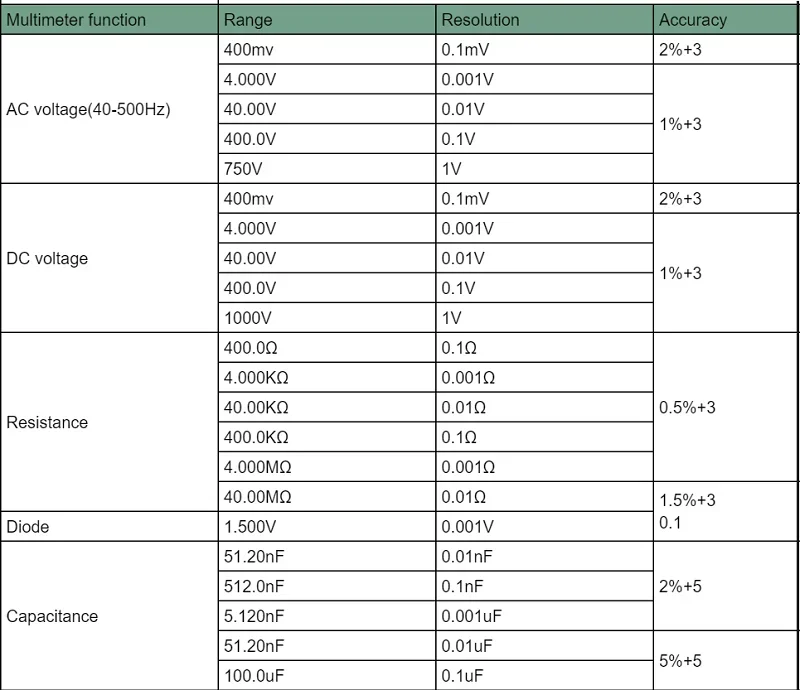

Multimeter parameters

Maximum DC input voltage:1000V

Maximum AC input voltage:750V

Maximum measured resistance:40MΩ

Maximum measuring resistance of capacitance:100uF

Duty cycle measurement range:0.1%-99.9%

Diode measuring range:0V-1.5V

Maximum resistance of on-off detection:30Ω

Counts:

4000 counts,Refreshes:3 times per second

Other parameters

Display screen: 2.8 inches

touch screen: Resistive touch screen

USB interface: TYPE-C

Storage Capacity: 3.5MB

Image Format: BMP

Battery: Built-in Lithium battery

Storage temperature: -20~60℃(-4~140℉)

Working temperature: 0-50℃(32-122℉)

Working humidity: <85%RH(non condensing)

Product size:  134*69*25mm

Product weight: 125g

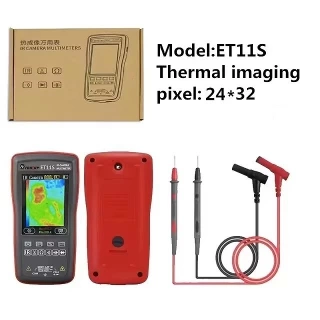

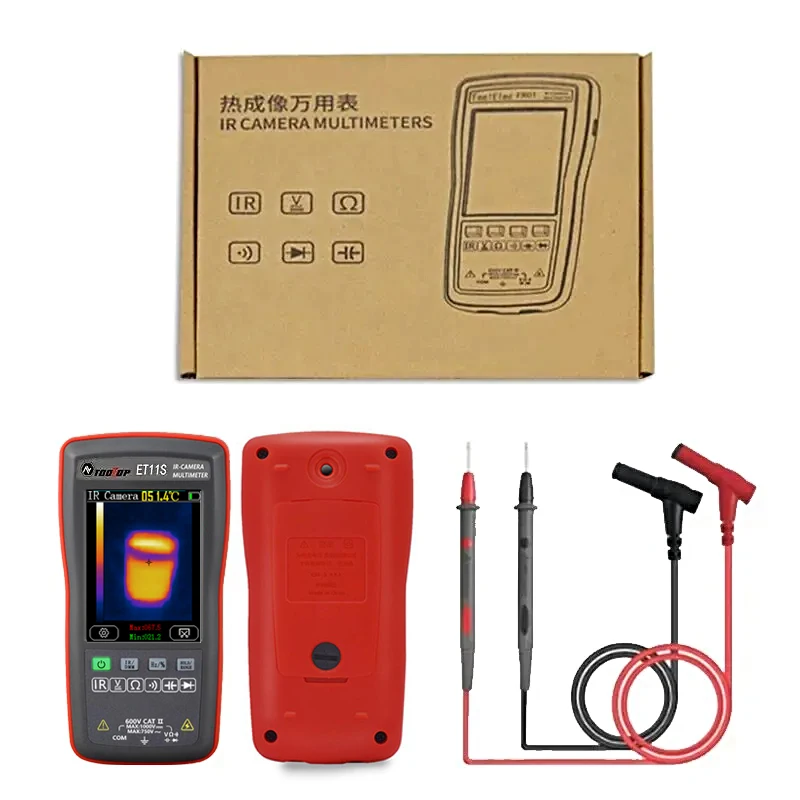

Package List:

1 x Thermal imager Multimeter

1 x One Pair Test Leads

1 x User Manual

1 x Box

Details Pictures:
