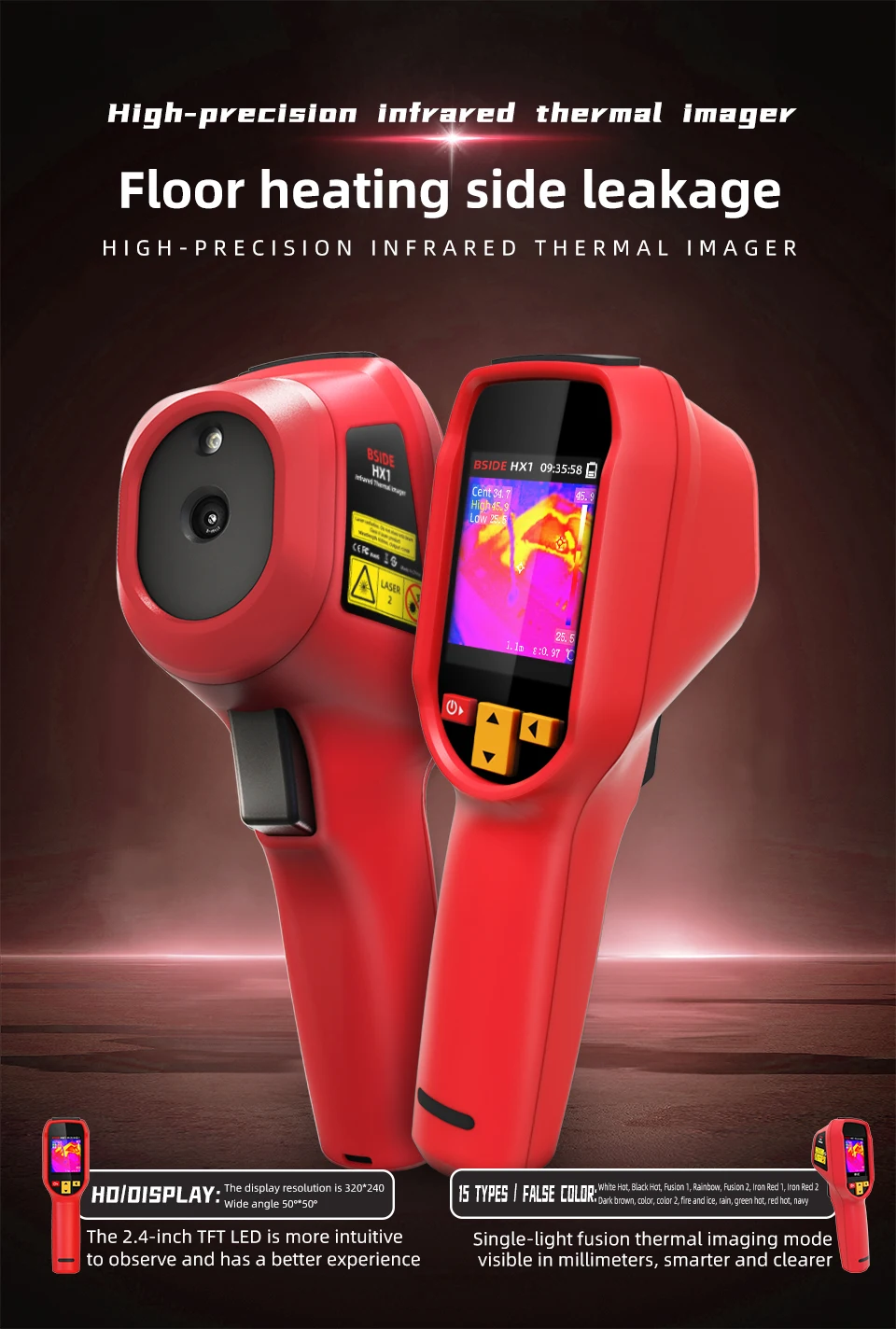

BSIDE Thermal Imaging Camera 240 x 240 Resolution Handheld Infrared Camera, 320 x 240 Full-Viewing TFT

• [240 x 240 Resolution]: BSIDE HX1 thermal imaging camera has 240 x 240 resolution, which could help you detect potential problems early and diagnose problems reliably.

• [15 Thermal Palettes]: Industrial infrared camera has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.

• [Full-Viewing TFT LCD]: Handheld infrared camera equipped with 2.4 inch 320 x 240 full-viewing color screen, which provides you with best reading enjoyment, you could get the clear test results at wide angle.

• [Accurate Measurement]: Thermal imaging camera enables a refresh rate of 25 Hz and a wide temperature range from -20℃to 550℃(-4℉ to 1022℉).

• [Efficient Data Storage and Export]: The infrared imager can be connected to computer via USB for further analysis. The memory card can hold more than 30,000 images.

• [Super Battery Life]: IR laser imager comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.

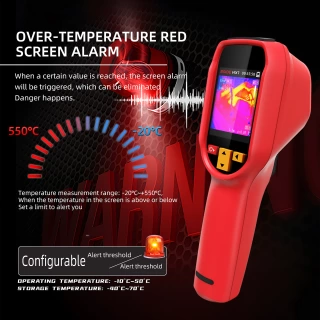

• [High & Low Temperature Alarm]: The Infrared camera with high and low temperature alarm functions, the camera will give out alarm when the temp exceed or under the setting data.

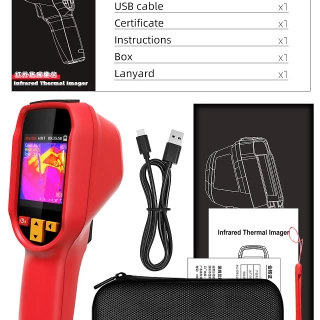

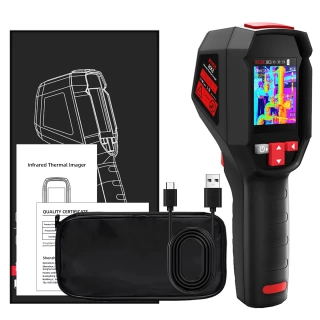

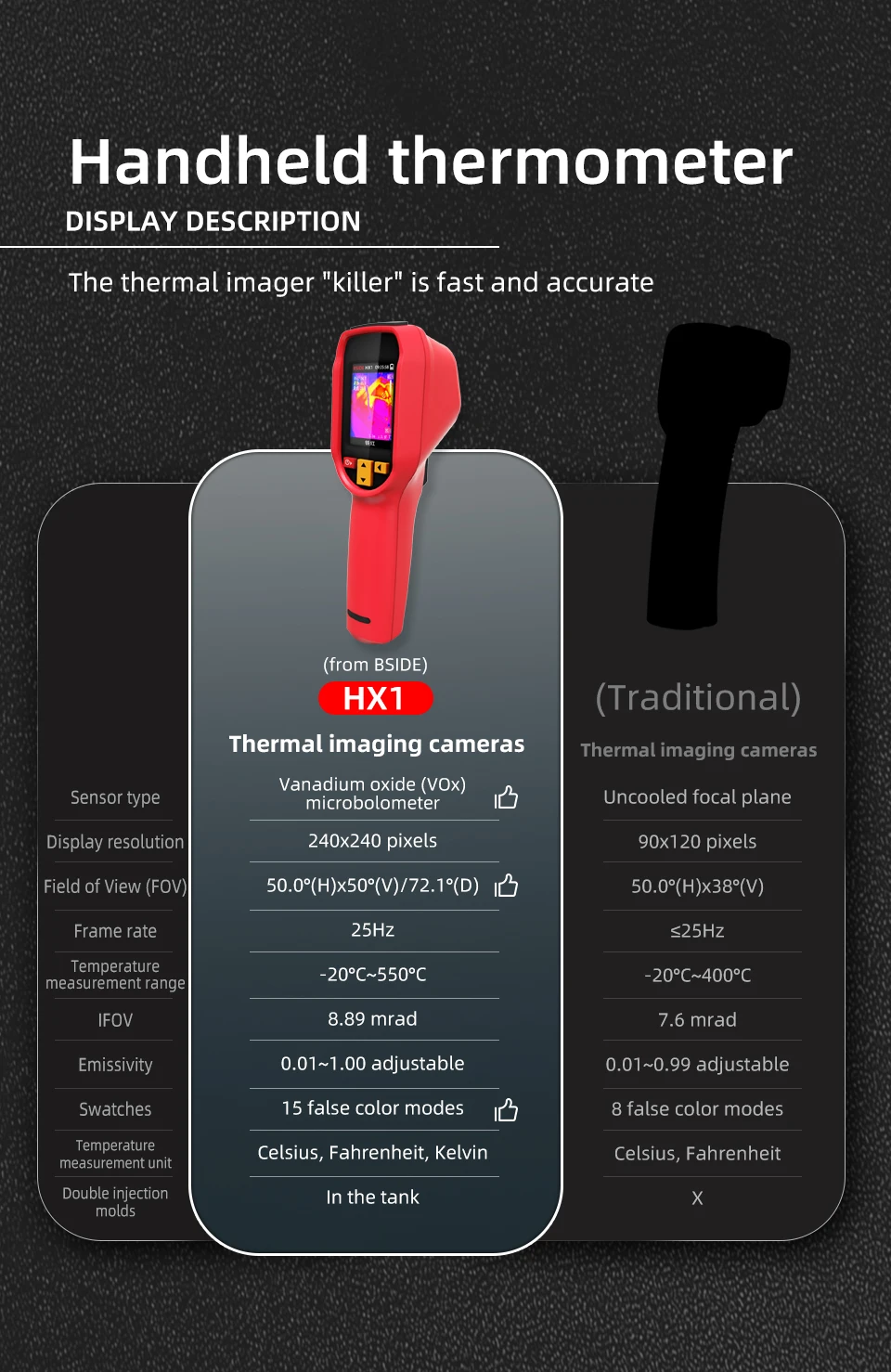

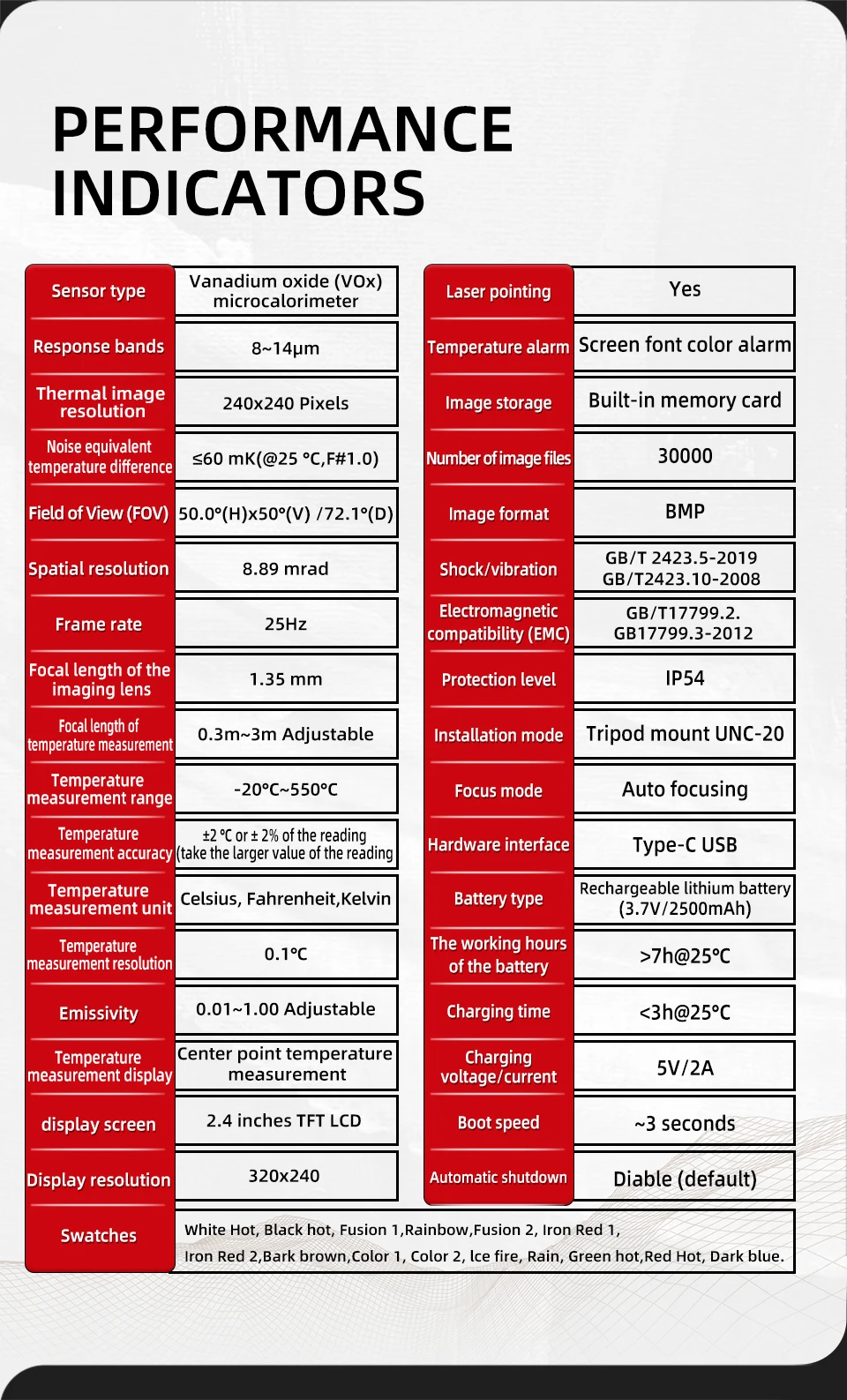

Features: 240*240 infrared resolution, more clear and more details With 15 kinds of pseudo-colors, you can flexibly choose the right color palette ℃/℉/K selectable: -20550℃/-41022℉ Sufficient memory capacity, capable of storing 30,000 images With rechargeable Li-ion battery, longer battery life Specification: Display: 2.4 inch TFT LCD Sensor Type: Vanadium Oxide (VOx) Microbolometer Response band:8-14pm Thermal image resolution:240*240 pixels Noise Equivalent Temperature Difference (NETD):60mK(@25℃,F#1.0) Spatial resolution (IFOV): 8.89mrad Frame rate:25Hz Imaging lens focal length:1.35mm Temperature measurement resolution: 0.1℃ Temperature measurement focal length: 0.3m-3m adjustable Temperature range: -20℃-550℃ Temperature measurement accuracy: 2 ℃ Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin Pseudo-color: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue Display resolution: 320*240 Image storage: 30000 Size: 193.4*59.4*77.4mm Weight: 277g Package Contents: Infrared thermal imager EVA storage bag USB charging cable Instruction manual Silicone lanyard
